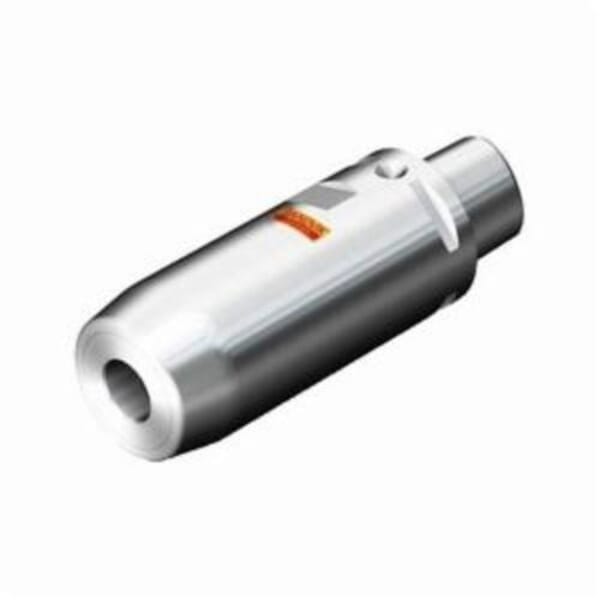

Sandvik Coromant 6629050 CoroChuck 930 High Precision Slender Design Hydraulic Tool Holder and Chuck, PSC Taper Shank, C3 Connection, 0.472 in Dia Hole, 1.102 in Dia Nose, 2.913 in Projection

ManufacturerSandvik Coromant

Part #826229050

MFG #6629050

Sandvik Coromant Hydraulic Tool Holder and Chuck, High Precision Slender Design, Series: CoroChuck 930, C3 Connection, PSC Taper Shank, 1.26 in Taper, 0.472 in Diameter Hole, 1.102 in Diameter Nose, 2.913 in Projection, 1.417 in Clamping Depth, 3.661 in Overall Length, System Size Machine Side: C3, ANSI Code: 930-C3-S-12-074, ISO Code: 930-C3-S-12-074, Yes Through Coolant

$921.02

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C3-S-12-074

Clamping Depth: 1.417 in

Connection Size: C3

Country of Origin: DE

Hole Diameter: 0.472 in

ISO Code: 930-C3-S-12-074

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.102 in

Overall Length: 3.661 in

Projection: 2.913 in

Series: CoroChuck 930

Shank Type: Coromant Capto, PSC Taper

System Size Machine Side: C3

Taper Size: 1.26 in

Through Coolant (Yes/No): Yes

Type: High Precision Slender Design

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5764228 Torque Wrench and 6829080 Clamping Screw

With the best pull out security on the market, this chuck is designed to eliminate vibration for excellent stability and accessibility in all milling and drilling operations. Covering all machine interfaces, CoroChuck 930 helps to maintain efficient production through quick and easy tool setups and changes.

5764228 Torque Wrench and 6829080 Clamping Screw

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-C3-S-12-074

Clamping Depth: 1.417 in

Connection Size: C3

Country of Origin: DE

Hole Diameter: 0.472 in

ISO Code: 930-C3-S-12-074

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.102 in

Overall Length: 3.661 in

Projection: 2.913 in

Series: CoroChuck 930

Shank Type: Coromant Capto, PSC Taper

System Size Machine Side: C3

Taper Size: 1.26 in

Through Coolant (Yes/No): Yes

Type: High Precision Slender Design

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

5764228 Torque Wrench and 6829080 Clamping Screw
