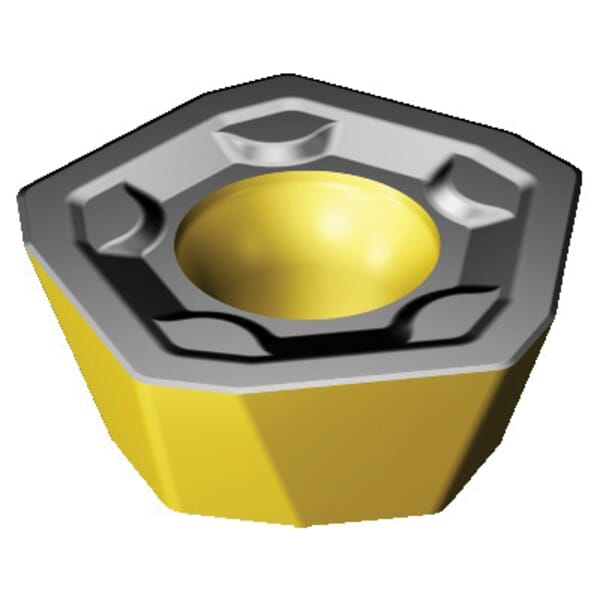

Sandvik Coromant 6428140 CoroMill 419 Milling Insert, ANSI Code: 419R-1405M-PH 3330, 419R..M-PH Insert, 1405 Insert, Carbide, Manufacturers Grade: 3330, Pentagon Shape, Material Grade: K

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6428140 CoroMill 419 Milling Insert, ANSI Code: 419R-1405M-PH 3330, 419R..M-PH Insert, 1405 Insert, Carbide, Manufacturers Grade: 3330, Pentagon Shape, Material Grade: K

ManufacturerSandvik Coromant

Part #826228140

MFG #6428140

Sandvik Coromant Milling Insert, Series: CoroMill 419, 419R..M-PH Insert, 1405 Insert, Pentagon, 0.531 in Inscribed Circle, 0.215 in Thickness, 0.386 in Length, PH Chipbreaker, 0.031 in Corner Radius, 19 deg Lead Angle, 0.217 in Hole Dia, Manufacturers Grade: 3330, ANSI Code: 419R-1405M-PH 3330, ISO Code: 419R-1405M-PH 3330, Right Hand, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, Cast Iron Material Application

$26.03

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 419R-1405M-PH 3330
Chipbreaker: PH
Corner Radius: 0.031 in
Country of Origin: SE
Finish: CVD-TiCN+Al2O3+TiN Coated
Hand of Insert: Right
Hole Diameter: 0.217 in
Inscribed Circle: 0.531 in
Insert Size: 1405
Insert Style: 419R..M-PH
ISO Code: 419R-1405M-PH 3330
Lead Angle: 19 deg
Length: 0.386 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 3330
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Series: CoroMill 419
Shape: Pentagon
Thickness: 0.215 in
