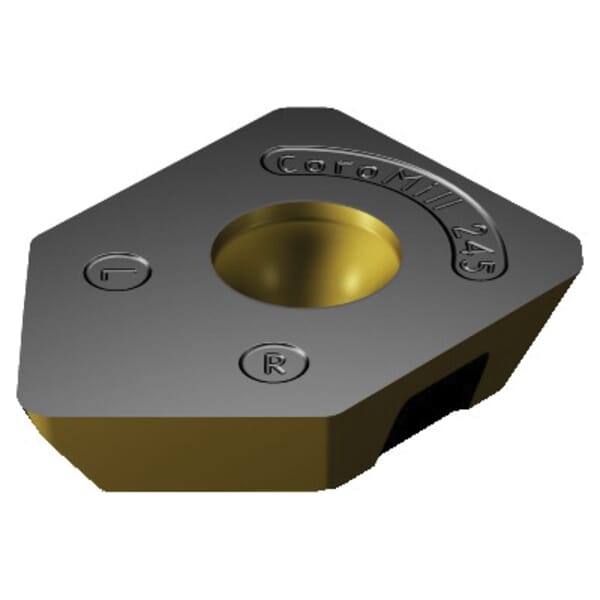

Sandvik Coromant 6428134 CoroMill 245 Milling Insert, R245..E-W (Tip) Insert, 12T3 Insert, Carbide, Manufacturers Grade: 3330, Squared Shape, Material Grade: K

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6428134 CoroMill 245 Milling Insert, R245..E-W (Tip) Insert, 12T3 Insert, Carbide, Manufacturers Grade: 3330, Squared Shape, Material Grade: K

ManufacturerSandvik Coromant

Part #826228134

MFG #6428134

Sandvik Coromant Milling Insert, Series: CoroMill 245, R245..E-W (Tip) Insert, 12T3 Insert, Squared Shape, 0.528 in Inscribed Circle, 0.156 in Thickness, 0.528 in Width, 0.528 in Length, W Chipbreaker, 0.059 in Corner Radius, 45 deg Lead Angle, 0.1614 in Diameter Hole, Manufacturers Grade: 3330, ISO Code: R245-12 T3 E-W 3330, Right Hand of Insert, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, Cast Iron Material Application

$33.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
Chipbreaker: W
Corner Radius: 0.059 in
Country of Origin: US
Finish: CVD-TiCN+Al2O3+TiN Coated
Hand of Insert: Right
Hole Diameter: 0.1614 in
Inscribed Circle: 0.528 in
Insert Size: 12T3
Insert Style: R245..E-W (Tip)
ISO Code: R245-12 T3 E-W 3330
Lead Angle: 45 deg
Length: 0.528 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 3330
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Series: CoroMill 245
Shape: Squared
Thickness: 0.156 in
Width: 0.528 in
: Light and Face Milling
