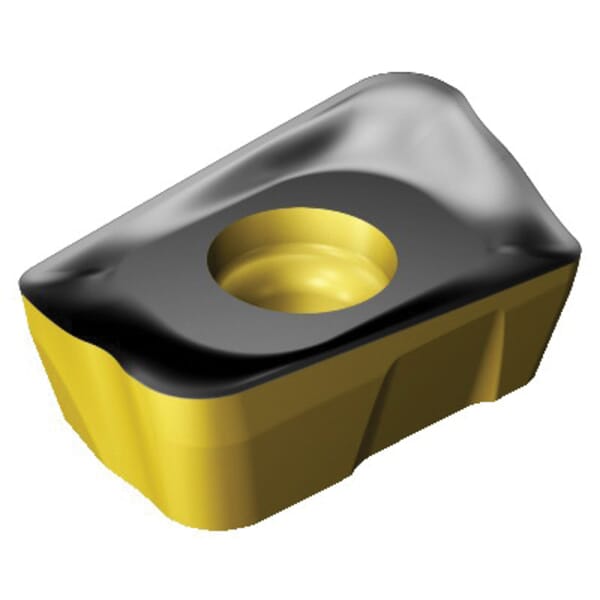

Sandvik Coromant 6428070 CoroMill 390 Milling Insert, ANSI Code: R390-18 06 12M-KMR 3330, R390-18..M-KMR Insert, 180612 Insert, Carbide, Manufacturers Grade: 3330, Rectangle Shape, Material Grade: K

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6428070 CoroMill 390 Milling Insert, ANSI Code: R390-18 06 12M-KMR 3330, R390-18..M-KMR Insert, 180612 Insert, Carbide, Manufacturers Grade: 3330, Rectangle Shape, Material Grade: K

ManufacturerSandvik Coromant

Part #826228070

MFG #6428070

Sandvik Coromant Milling Insert, Series: CoroMill 390, R390-18..M-KMR Insert, 180612 Insert, Rectangle Shape, 0.433 in Inscribed Circle, 0.249 in Thickness, 0.433 in Width, 0.726 in Length, KMR Chipbreaker, 0.047 in Corner Radius, Negative Rake, 90 deg Lead Angle, 0.163 in Diameter Hole, Manufacturers Grade: 3330, ANSI Code: R390-18 06 12M-KMR 3330, ISO Code: R390-18 06 12M-KMR 3330, Right Hand of Insert, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, Cast Iron Material Application

$31.63

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: R390-18 06 12M-KMR 3330
Chipbreaker: KMR
Corner Radius: 0.047 in
Country of Origin: SE
Finish: CVD-TiCN+Al2O3+TiN Coated
Hand of Insert: Right
Hole Diameter: 0.163 in
Inscribed Circle: 0.433 in
Insert Size: 180612
Insert Style: R390-18..M-KMR
ISO Code: R390-18 06 12M-KMR 3330
Lead Angle: 90 deg
Length: 0.726 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 3330
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Rake: Negative
Series: CoroMill 390
Shape: Rectangle
Thickness: 0.249 in
Width: 0.433 in
: Shoulder Milling, Repeated Shoulder Milling, Turn Milling, Deep Shoulder Milling, Edging, Pocketing, Linear and Helical Ramping
