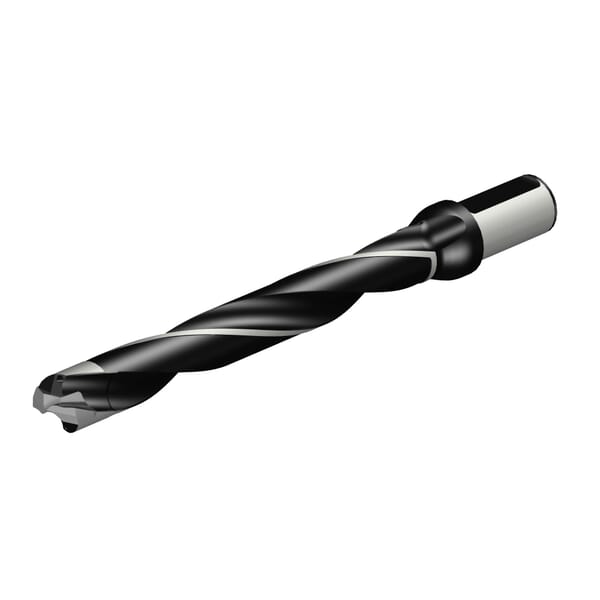

Sandvik Coromant 6426012 CoroDrill 870 Exchangeable Tip Drill, 1.181 to 1.22 in Drill, 13.465 in OAL, 8.282XD Drill Depth by Dia Ratio, 1.26 in Dia Shank

ManufacturerSandvik Coromant

Part #826226012

MFG #6426012

Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill 870, 1.181 to 1.22 in Drill, Cylindrical with Flat Shank, 1.26 in Shank Diameter, 10.079 in Flute Length, 13.465 in Overall Length, 9.945 in Maximum Drill Depth, 8.282XD Drill Depth by Diameter Ratio, Yes Through Coolant

$1,438.10

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 8.282XD

Drill Size: 1.181 to 1.22 in

Flute Length: 10.079 in

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 9.945 in

Overall Length: 13.465 in

Series: CoroDrill 870

Shank Diameter: 1.26 in

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..L-8 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
30.5 mm Dia cutting
32 mm Dia connection
20 deg right hand flute
256 mm L body
277.40 mm maximum overhang
4.6 mm L point
4000 r/min
H9 achievable hole tolerance
30 mm H shank
EFW feed direction
30 - 30.99 mm drill
32 mm Dia shank
