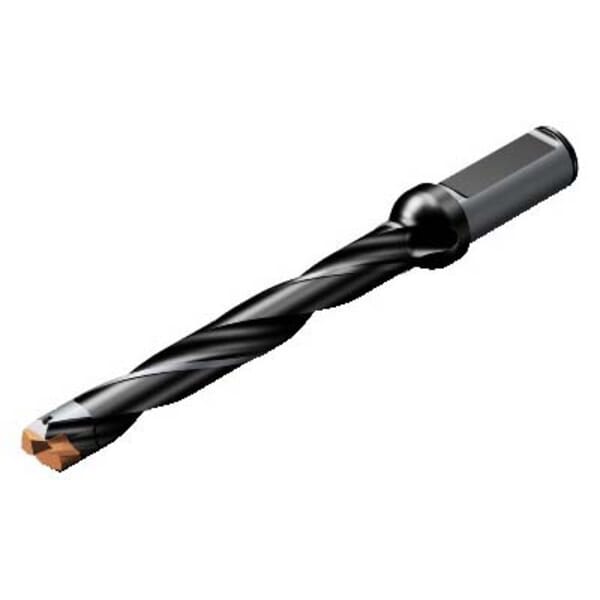

Sandvik Coromant 6426000 CoroDrill 870 Exchangeable Tip Drill, 1.102 to 1.141 in Drill, 12.835 in OAL, 8.177XD Drill Depth by Dia Ratio, 1.26 in Dia Shank

ManufacturerSandvik Coromant

Part #826226000

MFG #6426000

Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill 870, 1.102 to 1.141 in Drill, Cylindrical with Flat Shank, 1.26 in Shank Diameter, 2.5323 in Shank Length, 9.449 in Flute Length, 12.835 in Overall Length, 9.304 in Maximum Drill Depth, 8.177XD Drill Depth by Diameter Ratio, Yes Through Coolant

$1,346.85

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 8.177XD

Drill Size: 1.102 to 1.141 in

Flute Length: 9.449 in

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 9.304 in

Overall Length: 12.835 in

Series: CoroDrill 870

Shank Diameter: 1.26 in

Shank Length: 2.5323 in

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..L-8 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
28.9 mm Dia cutting
32 mm Dia connection
20 deg right hand flute
240 mm L body
261.68 mm maximum overhang
4.32 mm L point
5000 r/min
H9 achievable hole tolerance
30 mm H shank
EFW feed direction
28 - 28.99 mm drill
32 mm Dia shank
