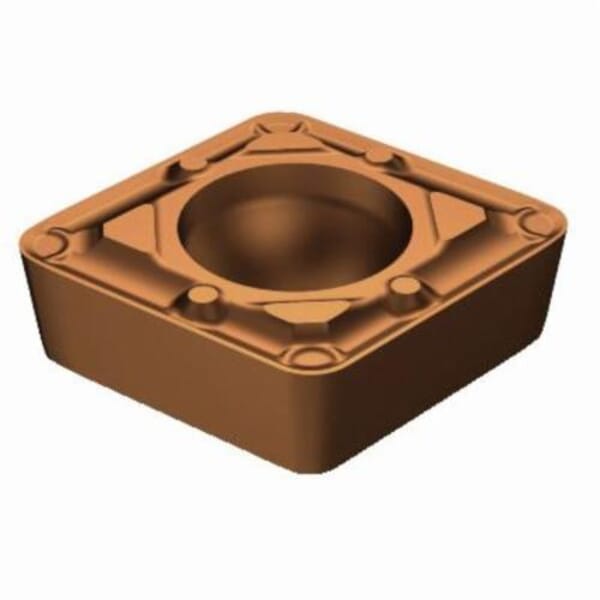

Sandvik Coromant 5724501 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)2-WF 1115, CCMT Insert, Material Grade: M, P, S, 3(2.5)2 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 1115

ManufacturerSandvik Coromant

Part #826224501

MFG #5724501

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)2 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: CCMT 3(2.5)2-WF 1115, ISO Code: CCMT 09 T3 08-WF 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel, Heat-Resistant Super Alloys and Titanium

$18.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: CCMT 3(2.5)2-WF 1115

Chipbreaker: WF

Corner Radius: 0.0312 in

Country of Origin: US

Cutting Direction: Neutral

Finish: PVD-TiAlN+AlCr2O3 Coated

For Use On: Stainless Steel, Steel, Heat-Resistant Super Alloys and Titanium

Hole Diameter: 0.1732 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)2

Insert Style: CCMT

ISO Code: CCMT 09 T3 08-WF 1115

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1115

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)2 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: CCMT 3(2.5)2-WF 1115, ISO Code: CCMT 09 T3 08-WF 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel, Heat-Resistant Super Alloys and Titanium

Catalog

SDS

Service Manual

Manufacturer Name: Sandvik Coromant

ANSI Code: CCMT 3(2.5)2-WF 1115

Chipbreaker: WF

Corner Radius: 0.0312 in

Country of Origin: US

Cutting Direction: Neutral

Finish: PVD-TiAlN+AlCr2O3 Coated

For Use On: Stainless Steel, Steel, Heat-Resistant Super Alloys and Titanium

Hole Diameter: 0.1732 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)2

Insert Style: CCMT

ISO Code: CCMT 09 T3 08-WF 1115

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1115

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 3 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)2 Insert, Diamond, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 1115, ANSI Code: CCMT 3(2.5)2-WF 1115, ISO Code: CCMT 09 T3 08-WF 1115, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel, Heat-Resistant Super Alloys and Titanium
