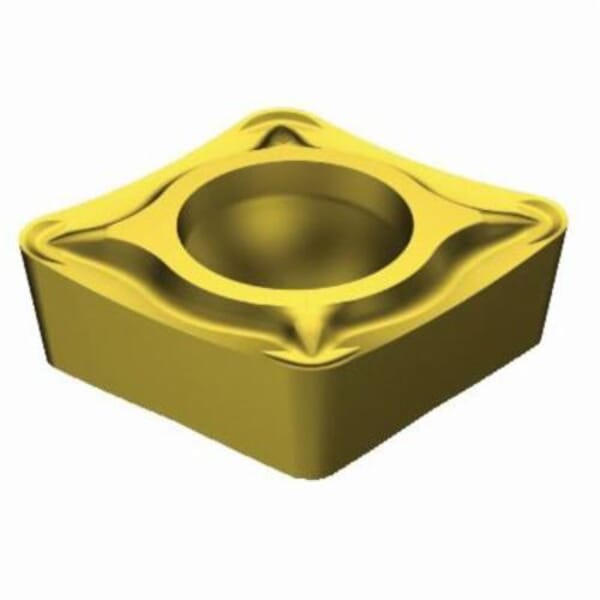

Sandvik Coromant 5724152 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)1-UM 2025, CCMT Insert, Material Grade: M, P, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5724152 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)1-UM 2025, CCMT Insert, Material Grade: M, P, 3(2.5)1 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide

ManufacturerSandvik Coromant

Part #826224152

MFG #5724152

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 3(2.5)1 Insert, Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 09 Seat, Positive Rake, UM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 2025, ANSI Code: CCMT 3(2.5)1-UM 2025, ISO Code: CCMT 09 T3 04-UM 2025, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P, For Use On: Stainless Steel and Steel

$14.77

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: CCMT 3(2.5)1-UM 2025

Chipbreaker: UM

Corner Radius: 0.0156 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Stainless Steel and Steel

Hole Diameter: 0.1732 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)1

Insert Style: CCMT

ISO Code: CCMT 09 T3 04-UM 2025

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 2025

Material: Carbide

Material Grade: M, P

Maximum Depth of Cut: 4 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Medium Machining Applications

Catalog

SDS

Service Manual

Manufacturer Name: Sandvik Coromant

ANSI Code: CCMT 3(2.5)1-UM 2025

Chipbreaker: UM

Corner Radius: 0.0156 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Stainless Steel and Steel

Hole Diameter: 0.1732 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)1

Insert Style: CCMT

ISO Code: CCMT 09 T3 04-UM 2025

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 2025

Material: Carbide

Material Grade: M, P

Maximum Depth of Cut: 4 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 09

Series: CoroTurn 107

Shape: Diamond

Thickness: 0.1562 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Medium Machining Applications

Catalog

SDS

Service Manual
