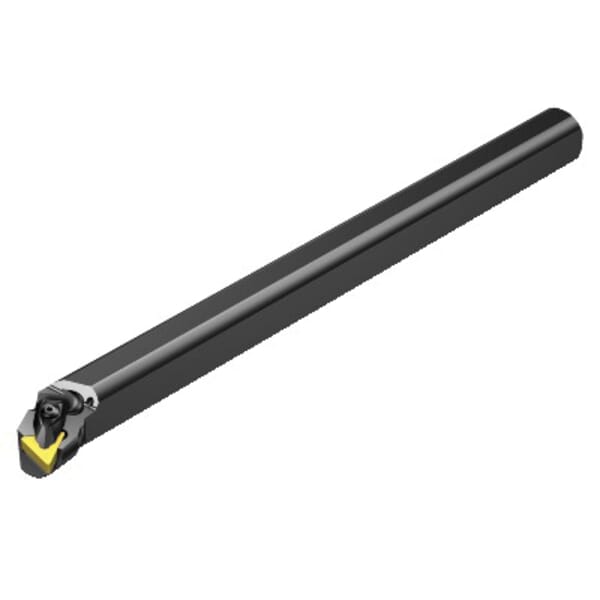

Sandvik Coromant 5723159 T-Max P Indexable Boring Bar, A..DTFNL Toolholder, 1.969 in Dia Min Bore, Left Hand of Holder, 11.811 in OAL

ManufacturerSandvik Coromant

Part #826223159

MFG #5723159

Sandvik Coromant Indexable Boring Bar, Series: T-Max P, 1.969 in Minimum Bore, 6.299 in Maximum Bore Depth, 11.811 in Overall Length, 1.575 in Shank Diameter, Cylindrical with 3-Flat Shank, Left Hand of Holder, A..DTFNL Toolholder, Insert Compatibility: TNMG 16 04 08, Triangle Insert, 3/8 in Inscribed Circle, 0.187 in Insert Thickness, Steel, Yes Through Coolant

$568.18

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Hand of Holder: Left

Inscribed Circle: 3/8 in

Insert Compatibility: TNMG 16 04 08

Insert Shape: Triangle

Insert Thickness: 0.187 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 6.299 in

Minimum Bore Diameter: 1.969 in

Overall Length: 11.811 in

Series: T-Max P

Shank Diameter: 1.575 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): Yes

Toolholder Type: A..DTFNL

Stable and secure clamping
Chip control and process security
Excellent surface finish

5762572 Shim, 5762856 Clamp Set, 5763195 Shim Screw and 5764148 Key
