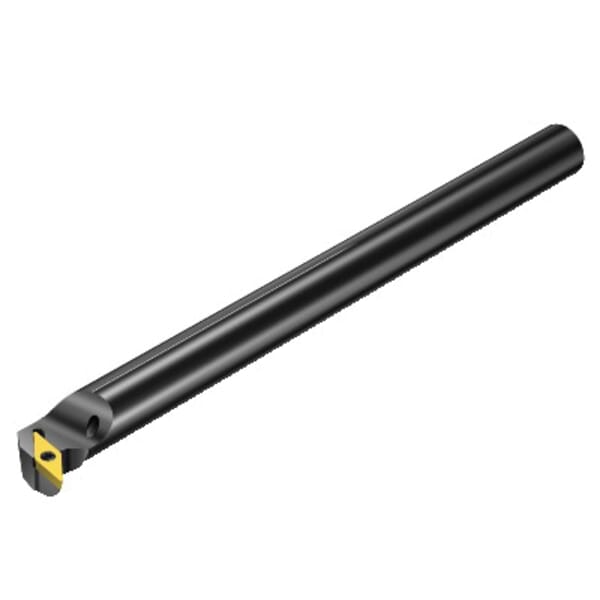

Sandvik Coromant 5721979 CoroTurn 107 Indexable Boring Bar, A..SVUCR -ER Toolholder, 0.866 in Dia Min Bore, Right Hand of Holder, 7.874 in OAL

ManufacturerSandvik Coromant

Part #826221979

MFG #5721979

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.866 in Minimum Bore Dia, 2.52 in Maximum Bore Depth, 7.874 in Overall Length, 0.63 in Shank Dia, Cylindrical Shank, Right Hand of Holder, A..SVUCR -ER Toolholder, Insert Compatibility: VCMT 11 03 04, 35 deg Diamond Insert, 1/4 in Inscribed Circle, 5763193 Insert Screw, 1/8 in Insert Thickness, Steel, Through Coolant: Yes

$225.08

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Right

Inscribed Circle: 1/4 in

Insert Compatibility: VCMT 11 03 04

Insert Screw: 5763193

Insert Shape: 35 deg Diamond, 35 deg Diamond/Rhombic

Insert Thickness: 1/8 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 2.52 in

Minimum Bore Diameter: 0.866 in

Overall Length: 7.874 in

Series: CoroTurn 107

Shank Diameter: 0.63 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: A..SVUCR -ER

Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

5763193 Insert Screw and 5764144 Key

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.866 in Minimum Bore Dia, 2.52 in Maximum Bore Depth, 7.874 in Overall Length, 0.63 in Shank Dia, Cylindrical Shank, Right Hand of Holder, A..SVUCR -ER Toolholder, Insert Compatibility: VCMT 11 03 04, 35 deg Diamond/Rhombic Insert, 1/4 in Inscribed Circle, 5763193 Insert Screw, 1/8 in Insert Thickness, Steel, Through Coolant: Yes
