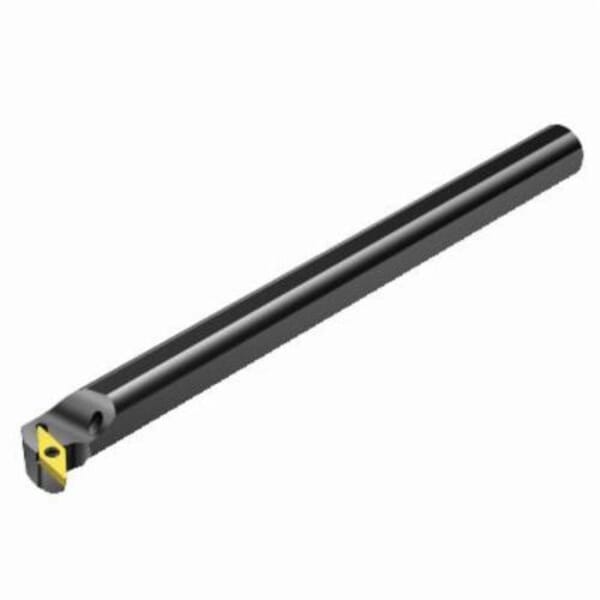

Sandvik Coromant 5721940 CoroTurn 107 Indexable Boring Bar, A..SVUBL Toolholder, 0.85 in Dia Min Bore, Left Hand of Holder, 8 in OAL

ManufacturerSandvik Coromant

Part #826221940

MFG #5721940

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.85 in Minimum Bore, 2-1/2 in Maximum Bore Depth, 8 in Overall Length, 5/8 in Shank Diameter, Cylindrical with 3-Flat Shank, Left Hand of Holder, A..SVUBL Toolholder, Insert Compatibility: VBMT 11 03 04, VCMT 11 03 04, 35 deg Diamond Insert, 1/4 in Inscribed Circle, 5763156 Insert Screw, 1/8 in Insert Thickness, Steel, Yes Through Coolant

$222.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Hand of Holder: Left

Inscribed Circle: 1/4 in

Insert Compatibility: VBMT 11 03 04, VCMT 11 03 04

Insert Screw: 5763156

Insert Shape: 35 deg Diamond, 35 deg Diamond/Rhombic

Insert Thickness: 1/8 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 2-1/2 in

Minimum Bore Diameter: 0.85 in

Overall Length: 8 in

Series: CoroTurn 107

Shank Diameter: 5/8 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): Yes

Toolholder Type: A..SVUBL

5763156 Insert Screw and 5764144 Key

Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

5763156 Insert Screw and 5764144 Key

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.85 in Minimum Bore, 2-1/2 in Maximum Bore Depth, 8 in Overall Length, 5/8 in Shank Diameter, Cylindrical with 3-Flat Shank, Left Hand of Holder, A..SVUBL Toolholder, Insert Compatibility: VBMT 11 03 04, VCMT 11 03 04, 35 deg Diamond/Rhombic Insert, 1/4 in Inscribed Circle, 5763156 Insert Screw, 1/8 in Insert Thickness, Steel, Yes Through Coolant

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Hand of Holder: Left

Inscribed Circle: 1/4 in

Insert Compatibility: VBMT 11 03 04, VCMT 11 03 04

Insert Screw: 5763156

Insert Shape: 35 deg Diamond, 35 deg Diamond/Rhombic

Insert Thickness: 1/8 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 2-1/2 in

Minimum Bore Diameter: 0.85 in

Overall Length: 8 in

Series: CoroTurn 107

Shank Diameter: 5/8 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): Yes

Toolholder Type: A..SVUBL

5763156 Insert Screw and 5764144 Key

Screw clamp design of CoroTurn 107 ensures stability and unobstructed chip flow while turning, it is easy to handle, clean and maintain
Tool holders are equipped with nozzles that direct precision coolant right at the insert edge to boost process security and provide excellent chip control
When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Wiper geometries available for high feeds and high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

5763156 Insert Screw and 5764144 Key

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 107, 0.85 in Minimum Bore, 2-1/2 in Maximum Bore Depth, 8 in Overall Length, 5/8 in Shank Diameter, Cylindrical with 3-Flat Shank, Left Hand of Holder, A..SVUBL Toolholder, Insert Compatibility: VBMT 11 03 04, VCMT 11 03 04, 35 deg Diamond/Rhombic Insert, 1/4 in Inscribed Circle, 5763156 Insert Screw, 1/8 in Insert Thickness, Steel, Yes Through Coolant
