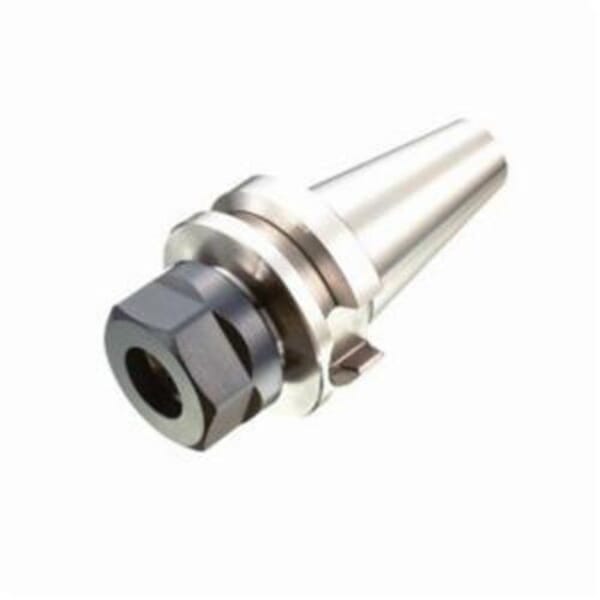

Sandvik Coromant 5721815 Collet Chuck, Tapered Shank, ER20 Collet System, 20 mm Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5721815 Collet Chuck, Tapered Shank, ER20 Collet System, 20 mm Chuck

ManufacturerSandvik Coromant

Part #826221815

MFG #5721815

Sandvik Coromant Collet Chuck, 171.8 mm Overall Length, 34 mm Diameter Nose, 70 mm Head Length/Projection, ER20 Collet System, Tapered Shank, 20 mm Chuck, BT50 Taper, 34 mm Diameter Collet Nut, ANSI Code: A2B14-50 20 070, ISO Code: A2B14-50 20 070, Yes Through Coolant

$259.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: A2B14-50 20 070

Chuck Size: 20 mm

Collet Nut Diameter: 34 mm

Collet System: ER20

Country of Origin: DE

Head Length/Projection: 70 mm

ISO Code: A2B14-50 20 070

Manufacturer Name: Sandvik Coromant

Nose Diameter: 34 mm

Overall Length: 171.8 mm

Shank Type: Tapered

Taper Size: BT50

Through Coolant (Yes/No): Yes

5763413 Locking Nut and 5763951 Dowel Set

MAS -BT403 -AD/B central/flange coolant - BT50 machine side adaptive interface
ER collet (DIN6499-B) -ER20 workpiece side adaptive interface
100 mm Dia body
0 deg body half taper
Steel body
Decentral over flange and axial coolant entry
80 bar coolant
Axial concentric coolant exit
21 mm Dia connection
70 mm L body
12000 r/min
A2B14 (2) tool style
20 life cycle state

5763413 Locking Nut and 5763951 Dowel Set

DIN 6499-B

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: A2B14-50 20 070

Chuck Size: 20 mm

Collet Nut Diameter: 34 mm

Collet System: ER20

Country of Origin: DE

Head Length/Projection: 70 mm

ISO Code: A2B14-50 20 070

Manufacturer Name: Sandvik Coromant

Nose Diameter: 34 mm

Overall Length: 171.8 mm

Shank Type: Tapered

Taper Size: BT50

Through Coolant (Yes/No): Yes

5763413 Locking Nut and 5763951 Dowel Set

MAS -BT403 -AD/B central/flange coolant - BT50 machine side adaptive interface
ER collet (DIN6499-B) -ER20 workpiece side adaptive interface
100 mm Dia body
0 deg body half taper
Steel body
Decentral over flange and axial coolant entry
80 bar coolant
Axial concentric coolant exit
21 mm Dia connection
70 mm L body
12000 r/min
A2B14 (2) tool style
20 life cycle state

5763413 Locking Nut and 5763951 Dowel Set

DIN 6499-B

Catalog
