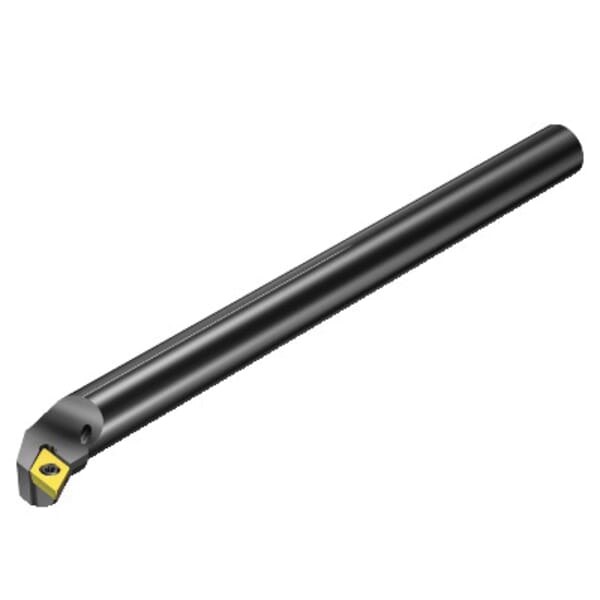

Sandvik Coromant 5721597 CoroTurn 111 Indexable Boring Bar, A..SDUPR -R Toolholder, 0.591 in Dia Min Bore, Right Hand of Holder, 4.921 in OAL

ManufacturerSandvik Coromant

Part #826221597

MFG #5721597

Sandvik Coromant Indexable Boring Bar, Series: CoroTurn 111, 0.591 in Minimum Bore Dia, 1.575 in Maximum Bore Depth, 4.921 in Overall Length, 0.394 in Shank Dia, Cylindrical Shank, Right Hand of Holder, A..SDUPR -R Toolholder Type, Insert Compatibility: DPMT 07 02 04, 55 deg Diamond Insert, 1/4 in Inscribed Circle, 5763201 Insert Screw, 0.094 in Insert Thickness, Steel, Yes Through Coolant (Yes/No)

$225.08

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: US

Hand of Holder: Right

Inscribed Circle: 1/4 in

Insert Compatibility: DPMT 07 02 04

Insert Screw: 5763201

Insert Shape: 55 deg Diamond, 55 deg Diamond/Rhombic

Insert Thickness: 0.094 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 1.575 in

Minimum Bore Diameter: 0.591 in

Overall Length: 4.921 in

Series: CoroTurn 111

Shank Diameter: 0.394 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Toolholder Type: A..SDUPR -R

Secure insert clamping
Excellent repeatability
Free chip flow
Low cutting forces
Excellent edge strength
11 deg clearance angle
Positive insert shape
Screw clamping ensures stability and unobstructed chip flow
Tools with high pressure coolant
Insert geometries and grades for all materials
Internal turning with long overhangs or unstable conditions

5763201 Insert Screw and 5764144 Key

CoroTurn 111 is a versatile system with inserts geometries and grades for all materials. It is a real problem solver when you want to avoid vibrations at long overhangs and unstable conditions.
