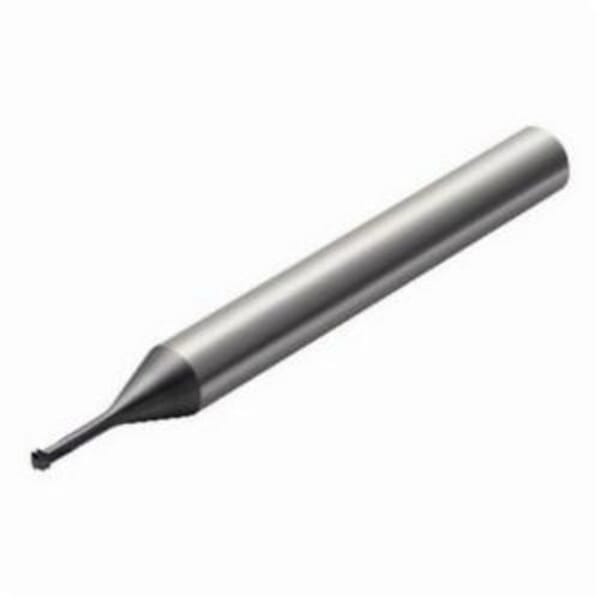

Sandvik Coromant 6416869 CoroMill Plura End Mill, 0.102 in Dia Cutter, 0.078 in Length of Cut, 3 Flutes, 0.236 in Dia Shank, 2.228 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6416869 CoroMill Plura End Mill, 0.102 in Dia Cutter, 0.078 in Length of Cut, 3 Flutes, 0.236 in Dia Shank, 2.228 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826216869

MFG #6416869

Sandvik Coromant End Mill, in Overall Length 0.102, in Length of Cut 2.228, in Number of Flutes 0.078, in Cutting Direction 0.236, deg Shank Type 15

$301.47

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R217.33-026320AC10P 1620

Country of Origin: DE

Cutter Diameter: 0.102 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 15 deg

ISO Code: R217.33-026320AC10P 1620

Length of Cut: 0.078 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 2.228 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

1620 manufacturer grade
32 TPI
90 deg cutting edge
1.5 mm Dia body
0 deg body half taper
Straight chip breaker
INT thread
1.3 mm Dia core at face
UN60 thread form
Without coolant entry
No coolant exit
NO 6-32 UNC thread
1.5 mm Dia neck
EFW feed direction
Right helix flute hand
11.75 mm L usable
21 mm overhang
20 life cycle state
Optimized grades for all materials and conditions
Straight, conical, with and without chip-dividing cutting edge tool shapes

DIN1835-A|DIN6535-HA

Thread Milling

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R217.33-026320AC10P 1620

Country of Origin: DE

Cutter Diameter: 0.102 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 15 deg

ISO Code: R217.33-026320AC10P 1620

Length of Cut: 0.078 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 2.228 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

1620 manufacturer grade
32 TPI
90 deg cutting edge
1.5 mm Dia body
0 deg body half taper
Straight chip breaker
INT thread
1.3 mm Dia core at face
UN60 thread form
Without coolant entry
No coolant exit
NO 6-32 UNC thread
1.5 mm Dia neck
EFW feed direction
Right helix flute hand
11.75 mm L usable
21 mm overhang
20 life cycle state
Optimized grades for all materials and conditions
Straight, conical, with and without chip-dividing cutting edge tool shapes

DIN1835-A|DIN6535-HA

Thread Milling

Catalog

SDS
