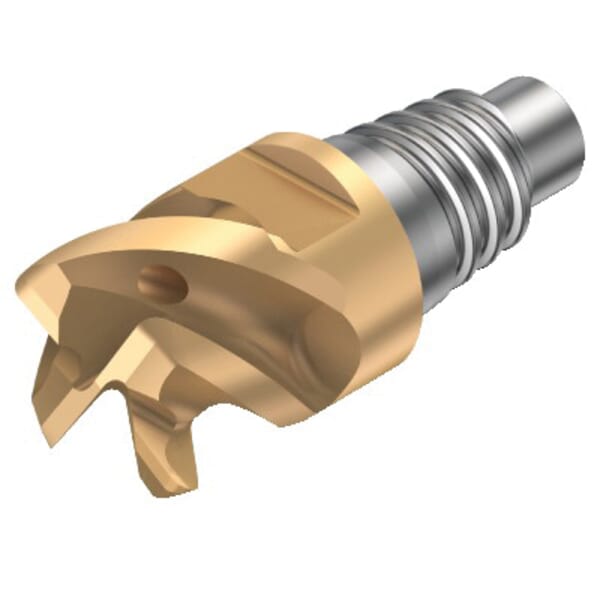

Sandvik Coromant 6223868 CoroMill 316 Exchangeable Medium Length Straight Milling Head, ANSI Code: 316-10SM450C10015P 1030, 316..SM..C..P Milling Tip Style, End Mill Milling Tip, Solid Carbide, 1.5 mm Corner Radius, Manufacturers Grade: 1030, 4 Flutes

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6223868 CoroMill 316 Exchangeable Medium Length Straight Milling Head, ANSI Code: 316-10SM450C10015P 1030, 316..SM..C..P Milling Tip Style, End Mill Milling Tip, Solid Carbide, 1.5 mm Corner Radius, Manufacturers Grade: 1030, 4 Flutes

ManufacturerSandvik Coromant

Part #826216229

MFG #6223868

Sandvik Coromant Milling Head, Exchangeable Medium Length Straight, Series: CoroMill 316, 316..SM..C..P Milling Tip, End Mill, 10 mm Cutting Dia, 6 mm Maximum Depth of Cut, 4 Flutes, P, 1.5 mm Corner Radius, Manufacturers Grade: 1030, ANSI Code: 316-10SM450C10015P 1030, ISO Code: 316-10SM450C10015P 1030, Right Hand, Solid Carbide, PVD-TiAlN Coated, Material Grade: K, M, P, S

$116.77

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 316-10SM450C10015P 1030
Corner Radius: 1.5 mm
Country of Origin: DE
Cutting Diameter: 10 mm
Finish: PVD-TiAlN Coated
Geometry: P
Hand of Insert: Right
ISO Code: 316-10SM450C10015P 1030
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 1030
Material: Solid Carbide
Material Grade: K, M, P, S
Maximum Depth of Cut: 6 mm
Milling Tip Style: 316..SM..C..P
Milling Tip Type: End Mill
Number of Flutes: 4
Series: CoroMill 316
Type: Exchangeable Medium Length Straight
: The CoroMill 316 system offers milling solutions for high feed face milling, slot milling, helical interpolation, shoulder milling, profile milling, and chamfer milling of components in various material groups from ISO P to ISO S. The exchangeable milling heads allow you to quickly, easily, and accurately switch between various operations. The end mills are even suitable for five-axis milling of flanks, which often requires tapered tools for stability at longer tool reach. CoroMill 316 features the Coromant EH coupling which is based on a self-centering screw thread for secure mounting and maximum strength. The coupling has a physical stop, which makes it easy to feel when the head is correctly tightened and helps to not overstress the clamping.
