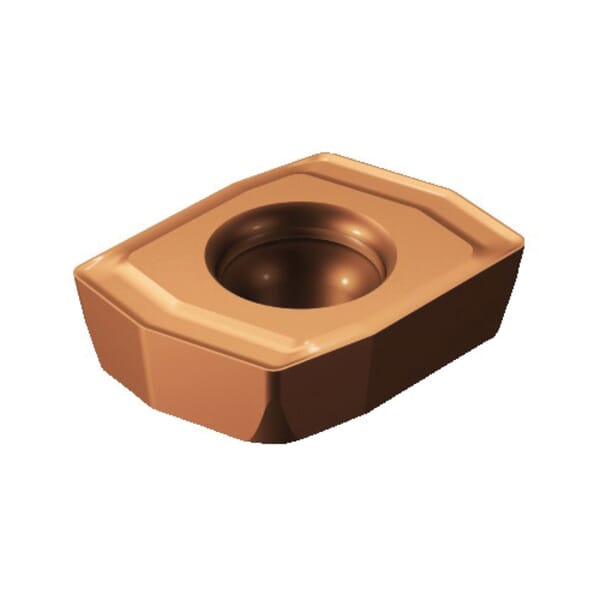

Sandvik Coromant 6227409 CoroDrill 880 Drilling Insert, ANSI Code: 880-01 02 03H-C-LM 1144, Rectangle Shape, 010203 Insert, 880-01..C-LM Insert, 0.0866 in THK, 0.1889 in Inscribed Circle, Medium Feed, Asymmetrical Point, Manufacturers Grade: 1144

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6227409 CoroDrill 880 Drilling Insert, ANSI Code: 880-01 02 03H-C-LM 1144, Rectangle Shape, 010203 Insert, 880-01..C-LM Insert, 0.0866 in THK, 0.1889 in Inscribed Circle, Medium Feed, Asymmetrical Point, Manufacturers Grade: 1144

ManufacturerSandvik Coromant

Part #826216021

MFG #6227409

Sandvik Coromant Drilling Insert, Series: CoroDrill 880, 880-01..C-LM Insert, 010203 Insert, Rectangle Shape, 0.1889 in Inscribed Circle, 0.0866 in Thickness, 0.1889 in Width, LM Chipbreaker, 0.0118 in Corner Radius, 0.0866 in Diameter Hole, Manufacturers Grade: 1144, ANSI Code: 880-01 02 03H-C-LM 1144, Right Hand of Insert, ISO Code: 880-01 02 03H-C-LM 1144, Asymmetrical Point, Medium Feed, For Use On: Heat Resistant Materials, Stainless Steel and Super Alloys, Carbide, PVD-TiAlN+AlCr2O3 Coated, Material Grade: M, S

$22.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 880-01 02 03H-C-LM 1144

Chipbreaker: LM

Corner Radius: 0.0118 in

Country of Origin: SE

Drilling Application: Asymmetrical Point

Feed Type: Medium

Finish: PVD-TiAlN+AlCr2O3 Coated

For Use On: Heat Resistant Materials, Stainless Steel and Super Alloys

Hand of Insert: Right

Hole Diameter: 0.0866 in

Inscribed Circle: 0.1889 in

Insert Size: 010203

Insert Style: 880-01..C-LM

ISO Code: 880-01 02 03H-C-LM 1144

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1144

Material: Carbide

Material Grade: M, S

Series: CoroDrill 880

Shape: Rectangle

Thickness: 0.0866 in

Width: 0.1889 in

Wiper geometry for best surface finish or higher feed possibilities
Optimized chip channels for accelerated chip evacuation
Easy identification due to laser marking with drill-, insert- and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life
Entering the workpiece with an assymetrical drill by default generates an unbalance
Step technology provide a step-by-step entry with lower cutting forces, and therefore enable a higher productivity as well as close hole tolerances
Inserts and geometries, available for all materials and applications, provide high productivity and extended tool life
With CoroDrill 880, you can do more than just drilling a hole
The tool can also be used for helical interpolation, boring, plunging, and turning

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 880-01 02 03H-C-LM 1144

Chipbreaker: LM

Corner Radius: 0.0118 in

Country of Origin: SE

Drilling Application: Asymmetrical Point

Feed Type: Medium

Finish: PVD-TiAlN+AlCr2O3 Coated

For Use On: Heat Resistant Materials, Stainless Steel and Super Alloys

Hand of Insert: Right

Hole Diameter: 0.0866 in

Inscribed Circle: 0.1889 in

Insert Size: 010203

Insert Style: 880-01..C-LM

ISO Code: 880-01 02 03H-C-LM 1144

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 1144

Material: Carbide

Material Grade: M, S

Series: CoroDrill 880

Shape: Rectangle

Thickness: 0.0866 in

Width: 0.1889 in

Wiper geometry for best surface finish or higher feed possibilities
Optimized chip channels for accelerated chip evacuation
Easy identification due to laser marking with drill-, insert- and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life
Entering the workpiece with an assymetrical drill by default generates an unbalance
Step technology provide a step-by-step entry with lower cutting forces, and therefore enable a higher productivity as well as close hole tolerances
Inserts and geometries, available for all materials and applications, provide high productivity and extended tool life
With CoroDrill 880, you can do more than just drilling a hole
The tool can also be used for helical interpolation, boring, plunging, and turning

SDS
