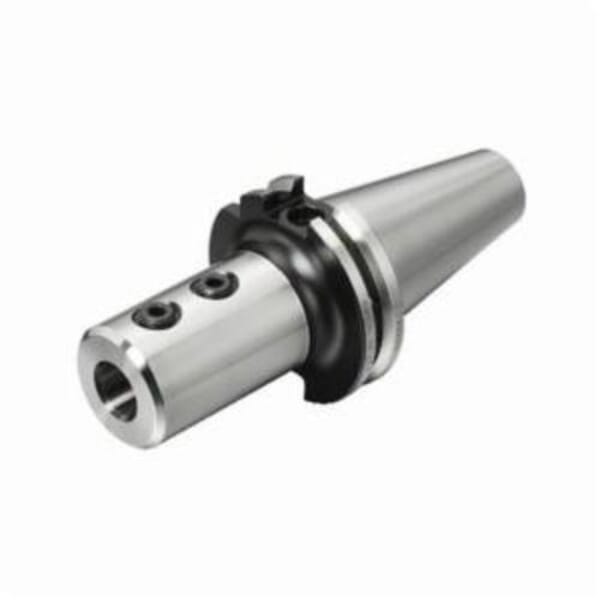

Sandvik Coromant 5727539 ISO 7388-1 to ISO 9766 Adapter, 1.574 in Dia Inside Hole, 7.543 in OAL, 3.543 in

ManufacturerSandvik Coromant

Part #826216001

MFG #5727539

Sandvik Coromant Adapter, ISO 7388-1 to ISO 9766, 1.574 in ID Hole, 3.543 in Gage Length/Projection, 2.992 in Diameter Nose, 7.543 in Overall Length, ANSI Code: A1B27-50 40 090, ISO Code: A1B27-50 40 090, System Size Machine Side: ISO50

$253.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: A1B27-50 40 090

Country of Origin: DE

Gage Length/Projection: 3.543 in

Inside Hole Diameter: 1.574 in

ISO Code: A1B27-50 40 090

Manufacturer Name: Sandvik Coromant

Nose Diameter: 2.992 in

Overall Length: 7.543 in

System Size Machine Side: ISO50

Type: ISO 7388-1 to ISO 9766

Taper: ISO7388.1/DIN69871 -AD/B central/flange machine side compatible interface
Cylindrical clamping (ISO9766 drill shank) workpiece side compatible interface
97.45 mm Dia body
45 deg body half taper
Steel body
Decentral over flange and axial coolant entry
20 bar coolant
Axial concentric coolant exit
50 mm Dia machine side connection
40 Nm torque
A1B27 (7) tool style
20 life cycle state

5758337 Dowel Set, 5763285 Screw and 5763951 Key
