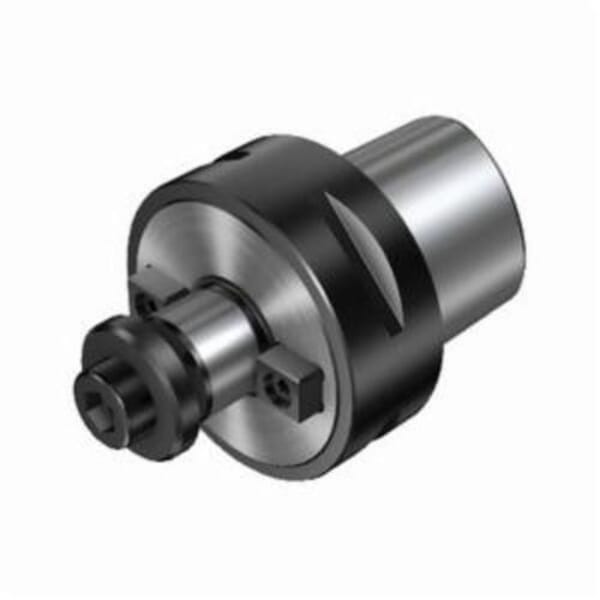

Sandvik Coromant 6228914 Adapter, 1.5748 in Dia Hole, Coromant Capto x Arbor Shank, C8 Taper, 1.5748 in Dia Nose, 2.3622 in Projection

ManufacturerSandvik Coromant

Part #826215848

MFG #6228914

Sandvik Coromant Adapter, 1.5748 in Hole Dia, Coromant Capto x Arbor Shank, C8 Taper, 1.5748 in Nose Dia, 2.3622 in Projection, 4.2519 in Overall Length, 3.4252 in Overall Dia, 3.1496 x 1.5748 in Shank Connection, ANSI Code: C8-391.05C-40 060M, ISO Code: C8-391.05C-40 060M

$721.48

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: C8-391.05C-40 060M

Country of Origin: DE

Hole Diameter: 1.5748 in

ISO Code: C8-391.05C-40 060M

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.5748 in

Overall Diameter: 3.4252 in

Overall Length: 4.2519 in

Projection: 2.3622 in

Shank Connection Size: 3.1496 x 1.5748 in

Shank Type: Coromant Capto x Arbor

Taper Size: C8

5758336 Key, 5758340 Key, 5758462 Mounting Screw, 5758478 Screw, 5763369 Washer and 6172950 Driving Key

Steel body
Axial concentric and radial coolant entry
80 bar coolant
Axial concentric coolant exit on circle
66.7 mm Dia bolt circle
80 mm Dia machine side connection
60 mm overhang
300 Nm torque
Cx-391.05C (1C) tool style
20 life cycle state

5758336 Key, 5758340 Key, 5758462 Mounting Screw, 5758478 Screw, 5763369 Washer and 6172950 Driving Key

Catalog

Manufacturer Name: Sandvik Coromant

ANSI Code: C8-391.05C-40 060M

Country of Origin: DE

Hole Diameter: 1.5748 in

ISO Code: C8-391.05C-40 060M

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.5748 in

Overall Diameter: 3.4252 in

Overall Length: 4.2519 in

Projection: 2.3622 in

Shank Connection Size: 3.1496 x 1.5748 in

Shank Type: Coromant Capto x Arbor

Taper Size: C8

5758336 Key, 5758340 Key, 5758462 Mounting Screw, 5758478 Screw, 5763369 Washer and 6172950 Driving Key

Steel body
Axial concentric and radial coolant entry
80 bar coolant
Axial concentric coolant exit on circle
66.7 mm Dia bolt circle
80 mm Dia machine side connection
60 mm overhang
300 Nm torque
Cx-391.05C (1C) tool style
20 life cycle state

5758336 Key, 5758340 Key, 5758462 Mounting Screw, 5758478 Screw, 5763369 Washer and 6172950 Driving Key

Catalog
