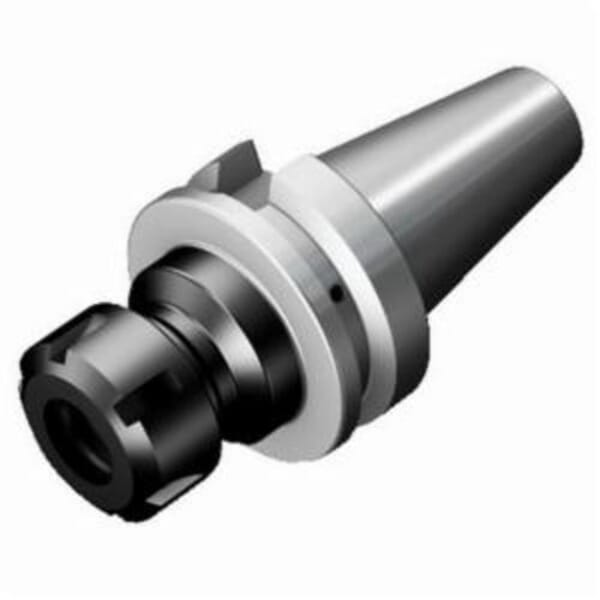

Sandvik Coromant 6229000 Collet Chuck, Tapered Shank, ER32 Collet System, 32 mm Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6229000 Collet Chuck, Tapered Shank, ER32 Collet System, 32 mm Chuck

ManufacturerSandvik Coromant

Part #826215827

MFG #6229000

Sandvik Coromant Collet Chuck, 108.4 mm Overall Length, 50 mm Nose Dia, 60 mm Head Length/Projection, ER32 Collet System, Tapered Shank, 32 mm Chuck, BT30 Taper, 50 mm Collet Nut Dia, ANSI Code: 392.55514-3032060, ISO Code: 392.55514-3032060, Yes Through Coolant (Yes/No)

$577.92

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 392.55514-3032060

Chuck Size: 32 mm

Collet Nut Diameter: 50 mm

Collet System: ER32

Country of Origin: DE

Head Length/Projection: 60 mm

ISO Code: 392.55514-3032060

Manufacturer Name: Sandvik Coromant

Nose Diameter: 50 mm

Overall Length: 108.4 mm

Shank Type: Tapered

Taper Size: BT30

Through Coolant (Yes/No): Yes

5763406 Collet Nut

BIG -PLUS MAS -BT403 -AD central coolant - BT30 machine side adaptive interface
ER collet (DIN6499-B) -ER32 workpiece side adaptive interface
50 mm Dia body
0 deg body half taper
Steel body
Axial concentric coolant entry
80 bar coolant
Axial concentric coolant exit
33 mm Dia connection
60 mm L body
392.55514 (1) tool style
20 life cycle state

DIN 6499-B

5763406 Collet Nut

Manufacturer Name: Sandvik Coromant

ANSI Code: 392.55514-3032060

Chuck Size: 32 mm

Collet Nut Diameter: 50 mm

Collet System: ER32

Country of Origin: DE

Head Length/Projection: 60 mm

ISO Code: 392.55514-3032060

Manufacturer Name: Sandvik Coromant

Nose Diameter: 50 mm

Overall Length: 108.4 mm

Shank Type: Tapered

Taper Size: BT30

Through Coolant (Yes/No): Yes

5763406 Collet Nut

BIG -PLUS MAS -BT403 -AD central coolant - BT30 machine side adaptive interface
ER collet (DIN6499-B) -ER32 workpiece side adaptive interface
50 mm Dia body
0 deg body half taper
Steel body
Axial concentric coolant entry
80 bar coolant
Axial concentric coolant exit
33 mm Dia connection
60 mm L body
392.55514 (1) tool style
20 life cycle state

DIN 6499-B

5763406 Collet Nut
