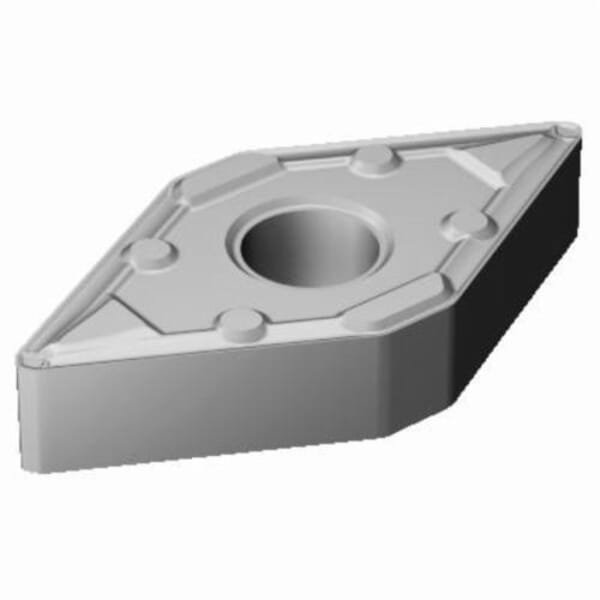

Sandvik Coromant 5731342 T-Max P Turning Insert, ANSI Code: DNMX 432-WF 5015, DNMX Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 5015

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5731342 T-Max P Turning Insert, ANSI Code: DNMX 432-WF 5015, DNMX Insert, Material Grade: K, P, 432 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 5015

ManufacturerSandvik Coromant

Part #826215770

MFG #5731342

Sandvik Coromant Turning Insert, Series: T-Max P, DNMX Insert, 432 Insert, Rhombic, 0.079 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 5015, ANSI Code: DNMX 432-WF 5015, ISO Code: DNMX 15 04 08-WF 5015, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: K, P, For Use On: Cast Iron and Steel

$23.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: DNMX 432-WF 5015
Chipbreaker: WF
Corner Radius: 0.0312 in
Country of Origin: IN
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Cast Iron and Steel
Hole Diameter: 0.2029 in
Included Angle: 55 deg
Inscribed Circle: 1/2 in
Insert Size: 432
Insert Style: DNMX
ISO Code: DNMX 15 04 08-WF 5015
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 5015
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.079 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 15
Series: T-Max P
Shape: Rhombic
Thickness: 0.1874 in
: Sandvik Coromant Turning Insert, Series: T-Max P, DNMX Insert, 432 Insert, Rhombic, 0.079 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 15 Seat, Negative Rake, WF Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 5015, ANSI Code: DNMX 432-WF 5015, ISO Code: DNMX 15 04 08-WF 5015, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: K, P, For Use On: Cast Iron and Steel
