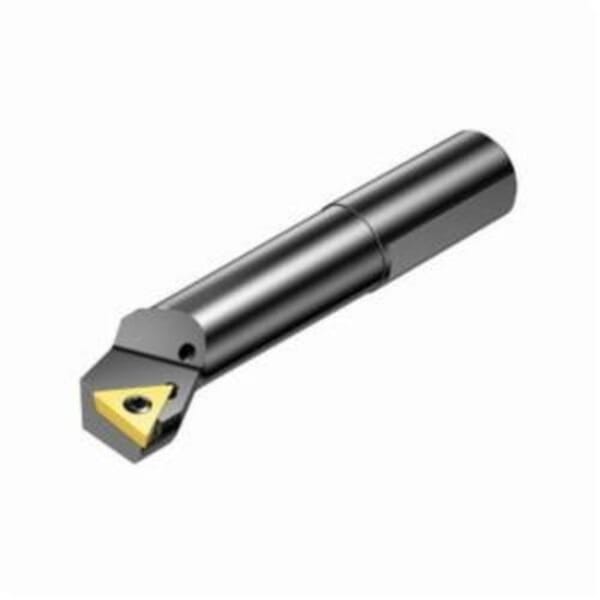

Sandvik Coromant 6415720 Indexable Boring Bar With Indexable Inserts, R429U-Axx..TC Toolholder, 1.024 in Dia Min Bore, Right Hand of Holder, 5.551 in OAL

ManufacturerSandvik Coromant

Part #826215720

MFG #6415720

Sandvik Coromant Indexable Boring Bar, 1.024 in Minimum Bore, 3.15 in Maximum Bore Depth, 5.551 in Overall Length, 0.63 in Shank Diameter, Cylindrical with 3-Flat Shank, Right Hand of Holder, R429U-Axx..TC Toolholder, Insert Compatibility: TCMT 090202 (RE<0.4), Triangle Insert, 7/32 in Inscribed Circle, 5513 020-47 Insert Screw, 0.093 in Insert Thickness, Steel, Yes Through Coolant

$541.42

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: DE

Hand of Holder: Right

Inscribed Circle: 7/32 in

Insert Compatibility: TCMT 090202 (RE<0.4)

Insert Screw: 5513 020-47

Insert Shape: Triangle

Insert Thickness: 0.093 in

Manufacturer Name: Sandvik Coromant

Material: Steel

Maximum Bore Depth: 3.15 in

Minimum Bore Diameter: 1.024 in

Overall Length: 5.551 in

Shank Diameter: 0.63 in

Shank Type: Cylindrical with 3-Flat

Through Coolant (Yes/No): Yes

Toolholder Type: R429U-Axx..TC

Axial concentric coolant entry
20 bar coolant
40 - 60 deg insert screw clamping interface
Axial inclined coolant exit
0 deg orthogonal rake
15.5 mm H shank
92 deg cutting edge
-2 deg inclination
141 mm L functional
80 mm L usable
82 - 104 mm overhang
-2 deg lead
0.8 Nm torque
R429U-Axx..TC tool style
13 mm W functional
20 life cycle state

5763200 Screw, 5764137 Key and 5764144 Key

For fine boring head

5763200 Screw, 5764137 Key and 5764144 Key
