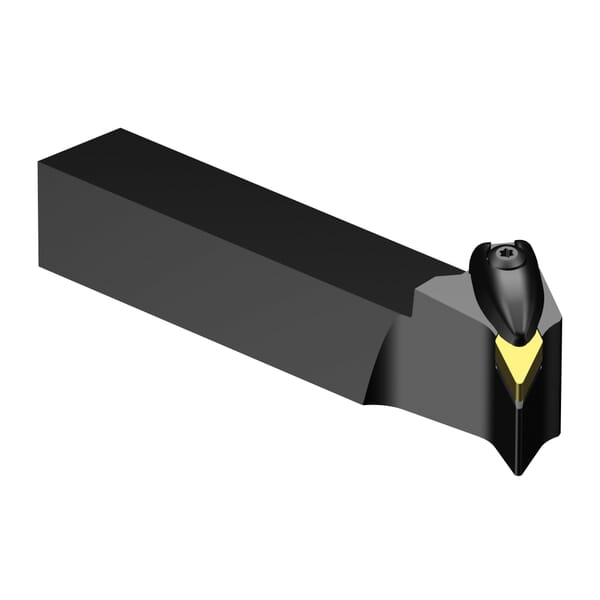

Sandvik Coromant 5731469 T-Max P Turning Shank Tool, ANSI Code: DVPNL 2525M 16, DVPNR/L Tool Holder, VNMG 16 04 08 Insert, Left Hand Cutting, 0.9842 in H x 0.9842 in W Rectangle Shank, -27.5 deg Lead Angle, -4 deg Rake, 5.9055 in OAL

ManufacturerSandvik Coromant

Part #826215698

MFG #5731469

Sandvik Coromant Turning Shank Tool, Series: T-Max P, DVPNR/L Tool Holder, 5.9055 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: VNMG 16 04 08, 43167 Insert Seat, Left Hand Cutting Direction, -27.5 deg Lead Angle, ANSI Code: DVPNL 2525M 16, ISO Code: DVPNL 2525M 16, -4 deg Rake, Steel

$223.87

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: DVPNL 2525M 16

Country of Origin: SE

Cutting Direction: Left Hand

Insert Compatibility: VNMG 16 04 08

Insert Seat Size: 43167

ISO Code: DVPNL 2525M 16

Lead Angle: -27.5 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 5.9055 in

Rake: -4 deg

Series: T-Max P

Shank Size: 0.9842 in H x 0.9842 in W

Shank Type: Rectangle

Tool Holder Style: DVPNR/L

0 deg body machine side
20 life cycle state
0 deg body workpiece side
Without coolant entry
Floating wedge, RC hole
No coolant exit
117.5 deg cutting edge
-13 deg inclination
39.2 mm maximum overhang
25 deg ramping
V insert shape
3 Nm torque
25 mm H functional
32 mm W functional
150 mm L functional

Manufacturer Name: Sandvik Coromant

ANSI Code: DVPNL 2525M 16

Country of Origin: SE

Cutting Direction: Left Hand

Insert Compatibility: VNMG 16 04 08

Insert Seat Size: 43167

ISO Code: DVPNL 2525M 16

Lead Angle: -27.5 deg

Manufacturer Name: Sandvik Coromant

Material: Steel

Overall Length: 5.9055 in

Rake: -4 deg

Series: T-Max P

Shank Size: 0.9842 in H x 0.9842 in W

Shank Type: Rectangle

Tool Holder Style: DVPNR/L

0 deg body machine side
20 life cycle state
0 deg body workpiece side
Without coolant entry
Floating wedge, RC hole
No coolant exit
117.5 deg cutting edge
-13 deg inclination
39.2 mm maximum overhang
25 deg ramping
V insert shape
3 Nm torque
25 mm H functional
32 mm W functional
150 mm L functional
