Sandvik Coromant 6732487 CoroMill Plura Square Shoulder End Mill, 0.157 in Dia Cutter, 0.354 in Length of Cut, 4 Flutes, 0.236 in Dia Shank, 2.244 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826215516

MFG #6732487

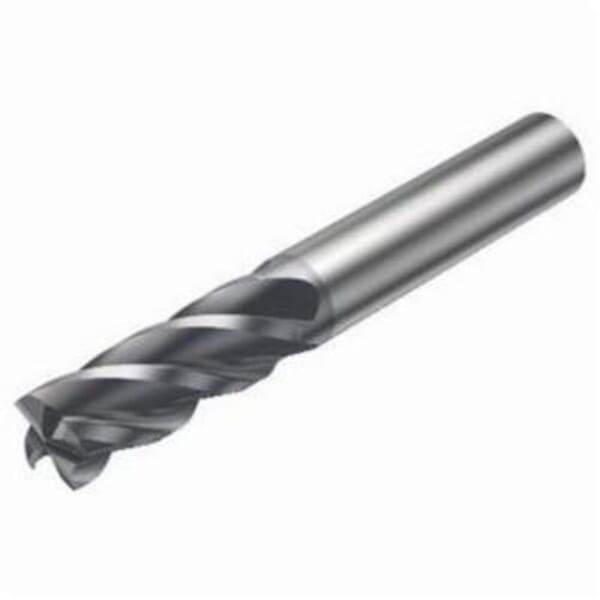

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.157 in Diameter Cutter, 2.244 in Overall Length, 0.354 in Length of Cut, 4 Flutes, 0.236 in Shank Diameter, Right Hand Cutting Direction, 42 deg Helix Angle, Cylindrical Shank, ANSI Code: 2P342-0400-PA 1730, ISO Code: 2P342-0400-PA 1730, Solid Carbide, PVD Coated

$132.60

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2P342-0400-PA 1730

Country of Origin: IT

Cutter Diameter: 0.157 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 42 deg

ISO Code: 2P342-0400-PA 1730

Length of Cut: 0.354 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 2.244 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Square

1730 manufacturer grade
2 mm maximum working engagement
1 maximum working engagement ratio
4.05 mm Dia body
0 - 30 deg body half taper
Center cutting capability
2.32 mm Dia core at face
14 mm L body
0.1 mm W corner chamfer
Without coolant entry
Cutting pitch differential
No coolant exit
3.8 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
10.5 deg axial rake
9 mm L usable
21 mm overhang
90 deg y-axis rot

DIN1835-A|DIN6535-HA

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.157 in Diameter Cutter, 2.244 in Overall Length, 0.354 in Length of Cut, 4 Flutes, 0.236 in Shank Diameter, Right Hand Cutting Direction, 42 deg Helix Angle, Cylindrical Shank, ANSI Code: 2P342-0400-PA 1730, ISO Code: 2P342-0400-PA 1730, Solid Carbide, PVD Coated
