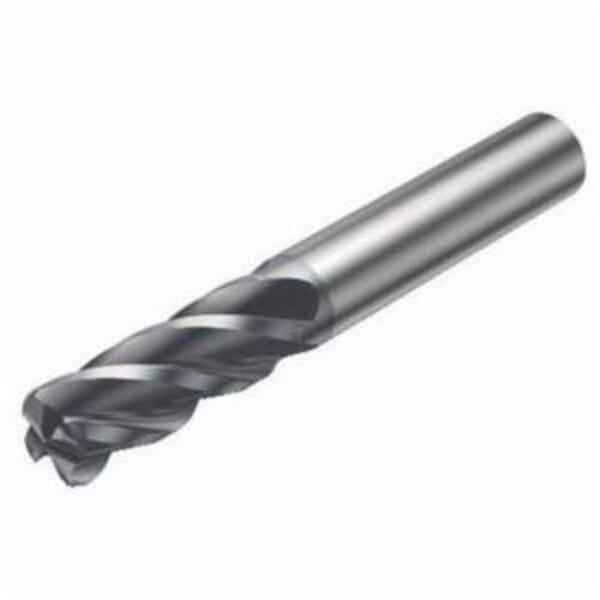

Sandvik Coromant 6732637 CoroMill Plura Square Shoulder End Mill, 0.787 in Dia Cutter, 1.653 in Length of Cut, 4 Flutes, 0.787 in Dia Shank, 4.094 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826215434

MFG #6732637

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.787 in Diameter Cutter, 4.094 in Overall Length, 1.653 in Length of Cut, 4 Flutes, 0.787 in Shank Diameter, Right Hand Cutting Direction, 42 deg Helix Angle, Cylindrical Shank, ANSI Code: 2S342-2000-200-PA 1730, ISO Code: 2S342-2000-200-PA 1730, Solid Carbide, PVD Coated

$738.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2S342-2000-200-PA 1730

Country of Origin: IT

Cutter Diameter: 0.787 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 42 deg

ISO Code: 2S342-2000-200-PA 1730

Length of Cut: 1.653 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 4.094 in

Series: CoroMill Plura

Shank Diameter: 0.787 in

Shank Type: Cylindrical

Type: Square

1730 manufacturer grade
2 mm maximum working engagement
1 maximum working engagement ratio
Center cutting capability
11.6 mm Dia core at face
Without coolant entry
Cutting pitch differential
No coolant exit
16 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
10.5 deg axial rake
42 mm L usable
4 maximum regrinds
54 mm overhang
2 mm corner radius
90 deg y-axis rot
7 deg ramping
13200 r/min

DIN1835-A|DIN6535-HA
