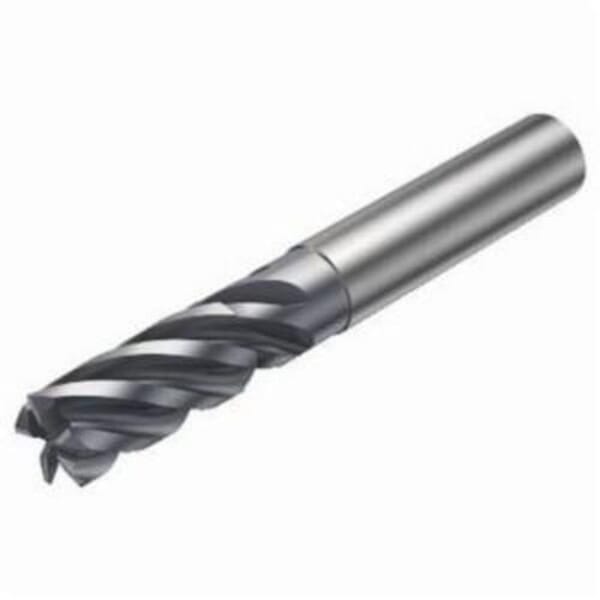

Sandvik Coromant 6732643 CoroMill Plura Square Shoulder End Mill, 0.787 in Dia Cutter, 1.653 in Length of Cut, 5 Flutes, 0.787 in Dia Shank, 4.094 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826215430

MFG #6732643

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.787 in Diameter Cutter, 4.094 in Overall Length, 1.653 in Length of Cut, 5 Flutes, 0.787 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: 2N342-2000-PC 1730, ISO Code: 2N342-2000-PC 1730, Solid Carbide, PVD Coated

$776.33

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2N342-2000-PC 1730

Country of Origin: IT

Cutter Diameter: 0.787 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 38 deg

ISO Code: 2N342-2000-PC 1730

Length of Cut: 1.653 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 5

Overall Length: 4.094 in

Series: CoroMill Plura

Shank Diameter: 0.787 in

Shank Type: Cylindrical

Type: Square

1730 manufacturer grade
1.5 mm maximum working engagement
1 maximum working engagement ratio
19 mm Dia body
0 - 30 deg body half taper
12 mm Dia core at face
52 mm L body
0.25 mm W corner chamfer
Without coolant entry
Cutting pitch differential
No coolant exit
19.5 mm Dia cutting face contact
19 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
10.5 deg axial rake
52 mm L usable
4 maximum regrinds
54 mm overhang

DIN1835-A|DIN6535-HA

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.787 in Diameter Cutter, 4.094 in Overall Length, 1.653 in Length of Cut, 5 Flutes, 0.787 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: 2N342-2000-PC 1730, ISO Code: 2N342-2000-PC 1730, Solid Carbide, PVD Coated

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 2N342-2000-PC 1730

Country of Origin: IT

Cutter Diameter: 0.787 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 38 deg

ISO Code: 2N342-2000-PC 1730

Length of Cut: 1.653 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 5

Overall Length: 4.094 in

Series: CoroMill Plura

Shank Diameter: 0.787 in

Shank Type: Cylindrical

Type: Square

1730 manufacturer grade
1.5 mm maximum working engagement
1 maximum working engagement ratio
19 mm Dia body
0 - 30 deg body half taper
12 mm Dia core at face
52 mm L body
0.25 mm W corner chamfer
Without coolant entry
Cutting pitch differential
No coolant exit
19.5 mm Dia cutting face contact
19 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
10.5 deg axial rake
52 mm L usable
4 maximum regrinds
54 mm overhang

DIN1835-A|DIN6535-HA

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.787 in Diameter Cutter, 4.094 in Overall Length, 1.653 in Length of Cut, 5 Flutes, 0.787 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: 2N342-2000-PC 1730, ISO Code: 2N342-2000-PC 1730, Solid Carbide, PVD Coated
