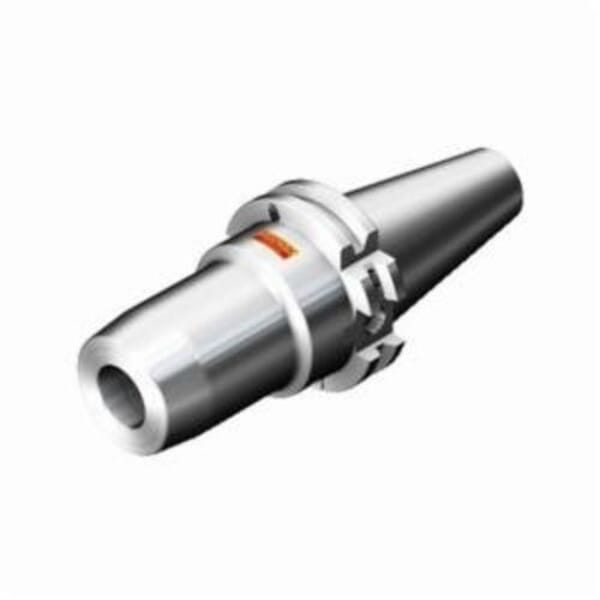

Sandvik Coromant 6532929 CoroChuck 930 High Precision Slender Design Hydraulic Tool Holder and Chuck, BIG-PLUS MAS-BT Shank, BB40 Connection, 0.472 in Dia Hole, 1.024 in Dia Nose, 3.346 in Projection

ManufacturerSandvik Coromant

Part #826215419

MFG #6532929

Sandvik Coromant Hydraulic Tool Holder and Chuck, High Precision Slender Design, Series: CoroChuck 930, BB40, BIG-PLUS MAS-BT Shank, BT40 Taper, 0.472 in Hole Dia, 1.024 in Nose Dia, 3.346 in Projection, 1.417 in Clamping Depth, 6.039 in Overall Length, System Size Machine Side: BB40, ANSI Code: 930-BB40-S-12-085, ISO Code: 930-BB40-S-12-085, Yes Through Coolant (Yes/No)

$1,211.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-BB40-S-12-085

Clamping Depth: 1.417 in

Connection Size: BB40

Country of Origin: DE

Hole Diameter: 0.472 in

ISO Code: 930-BB40-S-12-085

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.024 in

Overall Length: 6.039 in

Projection: 3.346 in

Series: CoroChuck 930

Shank Type: BIG-PLUS MAS-BT

System Size Machine Side: BB40

Taper Size: BT40

Through Coolant (Yes/No): Yes

Type: High Precision Slender Design

5762947 Length Adjusting Screw, 5764228 Torque Wrench and 6829082 Clamping Screw

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

For stable machining in milling and drilling applications

5762947 Length Adjusting Screw, 5764228 Torque Wrench and 6829082 Clamping Screw

Manufacturer Name: Sandvik Coromant

ANSI Code: 930-BB40-S-12-085

Clamping Depth: 1.417 in

Connection Size: BB40

Country of Origin: DE

Hole Diameter: 0.472 in

ISO Code: 930-BB40-S-12-085

Manufacturer Name: Sandvik Coromant

Nose Diameter: 1.024 in

Overall Length: 6.039 in

Projection: 3.346 in

Series: CoroChuck 930

Shank Type: BIG-PLUS MAS-BT

System Size Machine Side: BB40

Taper Size: BT40

Through Coolant (Yes/No): Yes

Type: High Precision Slender Design

5762947 Length Adjusting Screw, 5764228 Torque Wrench and 6829082 Clamping Screw

Best pull out security on the market thanks to the latest Fulcrum technology used for uppermost clamping performance with high clamping force, the clamping force ensures repeatability, time after time
Easy handling with torque wrench used for secure clamping
The machine side coupling is ground as the last operation to guarantee the highest demands on precision
Precision run out Less than 4 umm (157 uminch) at 2.5XDC
High precision repetition
Balancing according to DIN 69888
Clamping length can be adjusted with an adjustment screw
High metal removal rate provides increased productivity
Secure process and safe machining
Quick tool change and setup
Enhanced surface finish and increased tool life
Close hole tolerance

For stable machining in milling and drilling applications

5762947 Length Adjusting Screw, 5764228 Torque Wrench and 6829082 Clamping Screw
