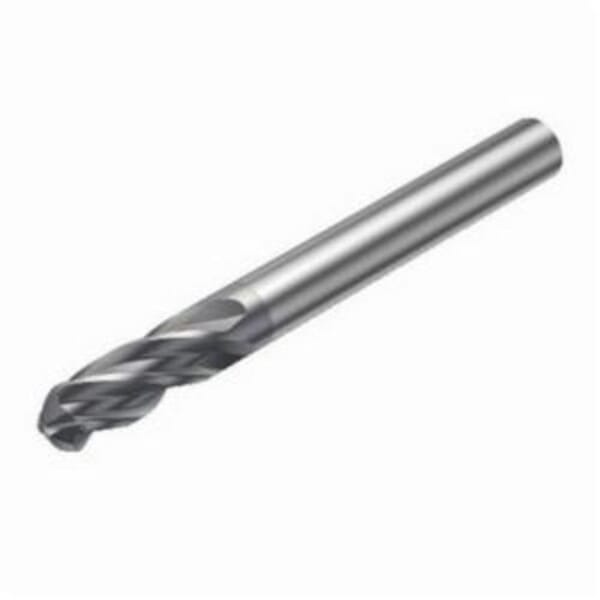

Sandvik Coromant 6334849 CoroMill Plura Ball Nose End Mill, 0.187 in Dia Cutter, 3/8 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 3 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6334849 CoroMill Plura Ball Nose End Mill, 0.187 in Dia Cutter, 3/8 in Length of Cut, 4 Flutes, 1/4 in Dia Shank, 3 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826215256

MFG #6334849

Sandvik Coromant End Mill, Ball Nose, Series: CoroMill Plura, 0.187 in Cutter Dia, 3 in Overall Length, 3/8 in Length of Cut, 4 Flutes, 1/4 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 1B240-0476-XA 1630, ISO Code: 1B240-0476-XA 1630, Solid Carbide, PVD Coated

$107.55

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 1B240-0476-XA 1630

Country of Origin: SE

Cutter Diameter: 0.187 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: 1B240-0476-XA 1630

Length of Cut: 3/8 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: CoroMill Plura

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Type: Ball Nose

1630 manufacturer grade
Cylindrical shank without clamping machine side adaptive interface
30 deg body half taper
Straight chip breaker
2.856 mm Dia core at face
20.4 mm L body
4 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
1.5 deg axial rake
9.525 mm L usable
40.2 mm overhang
0 deg lead
2.38 mm corner radius
15 deg ramping
80000 r/min
H9 diameter tolerance class cutting

Pre-Machining and Finishing

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 1B240-0476-XA 1630

Country of Origin: SE

Cutter Diameter: 0.187 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: 1B240-0476-XA 1630

Length of Cut: 3/8 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3 in

Series: CoroMill Plura

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Type: Ball Nose

1630 manufacturer grade
Cylindrical shank without clamping machine side adaptive interface
30 deg body half taper
Straight chip breaker
2.856 mm Dia core at face
20.4 mm L body
4 cutting length
Without coolant entry
No coolant exit
SFW (EFW) feed direction
Right helix flute hand
10.5 deg radial rake
1.5 deg axial rake
9.525 mm L usable
40.2 mm overhang
0 deg lead
2.38 mm corner radius
15 deg ramping
80000 r/min
H9 diameter tolerance class cutting

Pre-Machining and Finishing

Catalog

SDS
