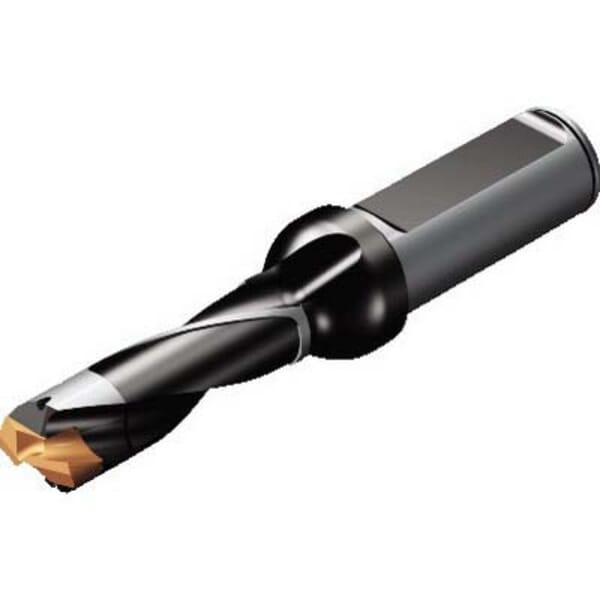

Sandvik Coromant 6035716 CoroDrill 870 Exchangeable Tip Drill, 17 to 17.99 mm Drill, 126 mm OAL, 3.168XD Drill Depth by Dia Ratio, 19.05 mm Dia Shank

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6035716 CoroDrill 870 Exchangeable Tip Drill, 17 to 17.99 mm Drill, 126 mm OAL, 3.168XD Drill Depth by Dia Ratio, 19.05 mm Dia Shank

ManufacturerSandvik Coromant

Part #826215012

MFG #6035716

Sandvik Coromant Exchangeable Tip Drill, Series: CoroDrill 870, 17 to 17.99 mm Drill, Cylindrical with Flat Shank, 19.05 mm Shank Diameter, 50 mm Shank Length, 59 mm Flute Length, 126 mm Overall Length, 56.71 mm Maximum Drill Depth, 3.168XD Drill Depth by Diameter Ratio, Yes Through Coolant

$582.78

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 3.168XD

Drill Size: 17 to 17.99 mm

Flute Length: 59 mm

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 56.71 mm

Overall Length: 126 mm

Series: CoroDrill 870

Shank Diameter: 19.05 mm

Shank Length: 50 mm

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..LX-3 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
17.9 mm Dia cutting
19.05 mm Dia connection
20 deg right hand flute
59 mm L body
73.27 mm maximum overhang
2.73 mm L point
30000 r/min
H9 achievable hole tolerance
17.3 mm H shank
EFW feed direction
17 - 17.99 mm drill
3/4 Dia shank

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Drill Depth by Diameter Ratio: 3.168XD

Drill Size: 17 to 17.99 mm

Flute Length: 59 mm

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 56.71 mm

Overall Length: 126 mm

Series: CoroDrill 870

Shank Diameter: 19.05 mm

Shank Length: 50 mm

Shank Type: Cylindrical with Flat

Through Coolant (Yes/No): Yes

870..LX-3 tool style
0 deg body half taper
20 life cycle state
Cylindrical/clamping shank
Axial concentric entry
10 bar coolant
Integrated screw clamping
Axial inclined exit
17.9 mm Dia cutting
19.05 mm Dia connection
20 deg right hand flute
59 mm L body
73.27 mm maximum overhang
2.73 mm L point
30000 r/min
H9 achievable hole tolerance
17.3 mm H shank
EFW feed direction
17 - 17.99 mm drill
3/4 Dia shank
