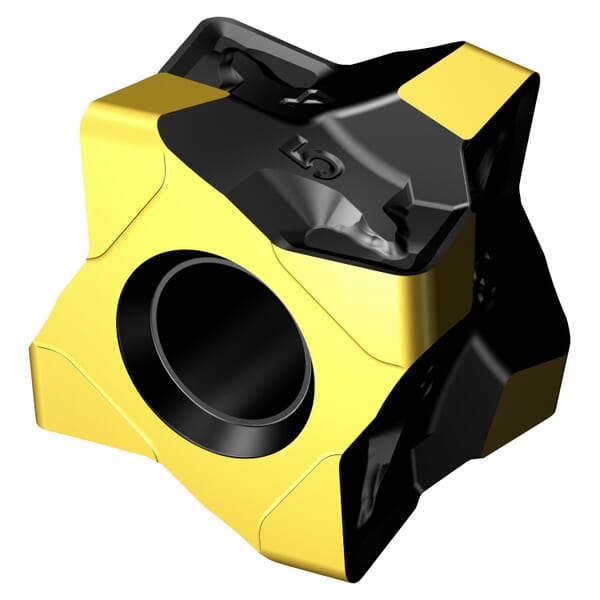

Sandvik Coromant 6814670 CoroTurn 300 Turning Insert, ANSI Code: 3-80-101108-8-M5 4325, 3-80 Insert, Material Grade: P, 101108 Insert, Irregular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: 4325

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6814670 CoroTurn 300 Turning Insert, ANSI Code: 3-80-101108-8-M5 4325, 3-80 Insert, Material Grade: P, 101108 Insert, Irregular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: 4325

ManufacturerSandvik Coromant

Part #826214670

MFG #6814670

Sandvik Coromant Turning Insert, Series: CoroTurn 300, 3-80 Insert, 101108 Insert, Irregular, 3.8 mm Maximum Depth of Cut, 0.472 in Inscribed Circle, 0.433 in Thickness, 0.3937 in Width, 11 Seat, Positive Rake, M5 Chipbreaker, 0.0312 in Corner Radius, Manufacturers Grade: 4325, ANSI Code: 3-80-101108-8-M5 4325, ISO Code: 3-80-101108-8-M5 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel

$33.35

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 3-80-101108-8-M5 4325
Chipbreaker: M5
Corner Radius: 0.0312 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Steel
Included Angle: 80 deg
Inscribed Circle: 0.472 in
Insert Size: 101108
Insert Style: 3-80
ISO Code: 3-80-101108-8-M5 4325
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4325
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.8 mm
Rake: Positive
Relief Angle: 0 deg
Seat Size: 11
Series: CoroTurn 300
Shape: Irregular
Thickness: 0.433 in
Width: 0.3937 in
: Sandvik Coromant Turning Insert, Series: CoroTurn 300, 3-80 Insert, 101108 Insert, Irregular, 3.8 mm Maximum Depth of Cut, 0.472 in Inscribed Circle, 0.433 in Thickness, 0.3937 in Width, 11 Seat, Positive Rake, M5 Chipbreaker, 0.0312 in Corner Radius, Manufacturers Grade: 4325, ANSI Code: 3-80-101108-8-M5 4325, ISO Code: 3-80-101108-8-M5 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: 3-80-101108-8-M5 4325
Chipbreaker: M5
Corner Radius: 0.0312 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Steel
Included Angle: 80 deg
Inscribed Circle: 0.472 in
Insert Size: 101108
Insert Style: 3-80
ISO Code: 3-80-101108-8-M5 4325
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4325
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.8 mm
Rake: Positive
Relief Angle: 0 deg
Seat Size: 11
Series: CoroTurn 300
Shape: Irregular
Thickness: 0.433 in
Width: 0.3937 in
: Sandvik Coromant Turning Insert, Series: CoroTurn 300, 3-80 Insert, 101108 Insert, Irregular, 3.8 mm Maximum Depth of Cut, 0.472 in Inscribed Circle, 0.433 in Thickness, 0.3937 in Width, 11 Seat, Positive Rake, M5 Chipbreaker, 0.0312 in Corner Radius, Manufacturers Grade: 4325, ANSI Code: 3-80-101108-8-M5 4325, ISO Code: 3-80-101108-8-M5 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
