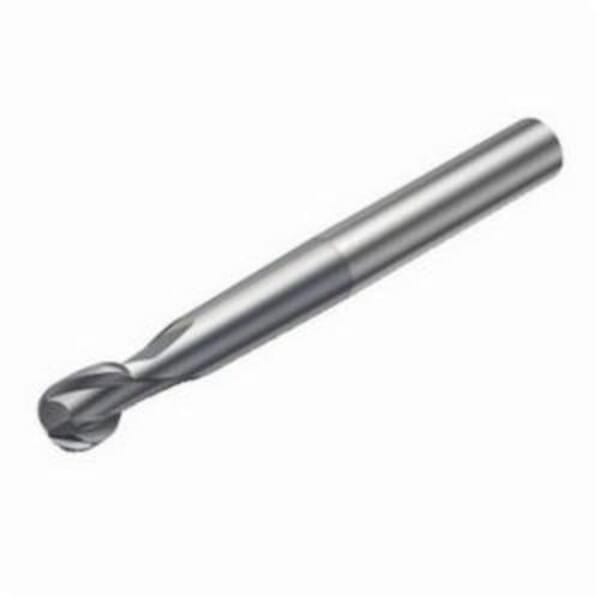

Sandvik Coromant 5743584 CoroMill Plura Ball Nose End Mill, 0.393 in Dia Cutter, 0.433 in Length of Cut, 2 Flutes, 0.393 in Dia Shank, 3.937 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5743584 CoroMill Plura Ball Nose End Mill, 0.393 in Dia Cutter, 0.433 in Length of Cut, 2 Flutes, 0.393 in Dia Shank, 3.937 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826213699

MFG #5743584

Sandvik Coromant End Mill, Ball Nose, Series: CoroMill Plura, 0.393 in Cutter Dia, 3.937 in Overall Length, 0.433 in Length of Cut, 2 Flutes, 0.393 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: R216.62-10030-AO11G 1610, ISO Code: R216.62-10030-AO11G 1610, Solid Carbide, PVD Coated

$363.80

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.62-10030-AO11G 1610

Country of Origin: DE

Cutter Diameter: 0.393 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.62-10030-AO11G 1610

Length of Cut: 0.433 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Cylindrical

Type: Ball Nose

1610 manufacturer grade
2 face effective cutt edge
Straight chip breaker
5 mm Dia core at face
Without coolant entry
3 mm L peripheral cylindrical
No coolant exit
8.2 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
-5.5 deg radial rake
1.5 deg axial rake
43 mm L usable
3 maximum regrinds
60 mm overhang
0 deg lead
5 mm corner radius
3 deg ramping
80000 r/min
H7 diameter tolerance class cutting

Pre-Machining and Finishing

DIN1835-A|DIN6535-HA

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: R216.62-10030-AO11G 1610

Country of Origin: DE

Cutter Diameter: 0.393 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: R216.62-10030-AO11G 1610

Length of Cut: 0.433 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.393 in

Shank Type: Cylindrical

Type: Ball Nose

1610 manufacturer grade
2 face effective cutt edge
Straight chip breaker
5 mm Dia core at face
Without coolant entry
3 mm L peripheral cylindrical
No coolant exit
8.2 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
-5.5 deg radial rake
1.5 deg axial rake
43 mm L usable
3 maximum regrinds
60 mm overhang
0 deg lead
5 mm corner radius
3 deg ramping
80000 r/min
H7 diameter tolerance class cutting

Pre-Machining and Finishing

DIN1835-A|DIN6535-HA

Catalog

SDS
