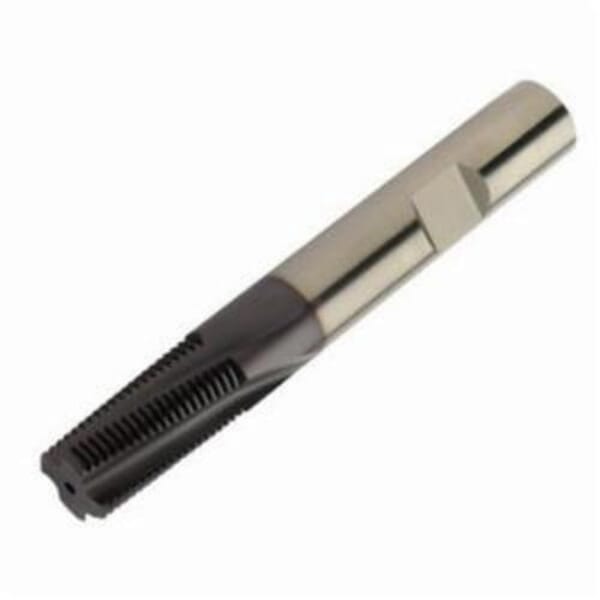

Sandvik Coromant 6251189 CoroMill Plura Right Hand Cutting Threading End Mill, G1-3 BSW Thread, 4.763 in OAL, 5 Flutes, 0.984 in Dia Shank

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6251189 CoroMill Plura Right Hand Cutting Threading End Mill, G1-3 BSW Thread, 4.763 in OAL, 5 Flutes, 0.984 in Dia Shank

ManufacturerSandvik Coromant

Part #826213178

MFG #6251189

Sandvik Coromant Threading End Mill, Right Hand Cutting, Series: CoroMill Plura, G1-3 Thread, BSW Thread, 0.984 in Diameter Cutting, 1.816 in Length of Cut, 4.763 in Overall Length, 5 Flutes, Weldon Flat Shank, 0.984 in Shank Diameter, Solid Carbide, TiAlN Coated

$2,047.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: DE

Cutting Diameter: 0.984 in

Finish: TiAlN Coated

Length of Cut: 1.816 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 5

Overall Length: 4.763 in

Series: CoroMill Plura

Shank Diameter: 0.984 in

Shank Type: Weldon Flat

Thread Size: G1-3

Thread Type: BSW

Type: Right Hand Cutting

1630 manufacturer grade
PVD finish
Solid carbide body
Coromant basic standard group
10.8 mm Dia core at face
Without coolant entry
No coolant exit
EFW feed direction code
10 deg right hand helix flute
23 mm H shank
46.15 mm L usable
65 mm overhang
H6 connection diameter tolerance
WH55 thread form
H, K, M, N, P, S material grade
R217.9x..BC..N tool style
80000 r/min
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN, it is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys
20 life cycle state

DIN1835-B/DIN6535-HB

Catalog

SDS

Manufacturer Name: Sandvik Coromant

Country of Origin: DE

Cutting Diameter: 0.984 in

Finish: TiAlN Coated

Length of Cut: 1.816 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 5

Overall Length: 4.763 in

Series: CoroMill Plura

Shank Diameter: 0.984 in

Shank Type: Weldon Flat

Thread Size: G1-3

Thread Type: BSW

Type: Right Hand Cutting

1630 manufacturer grade
PVD finish
Solid carbide body
Coromant basic standard group
10.8 mm Dia core at face
Without coolant entry
No coolant exit
EFW feed direction code
10 deg right hand helix flute
23 mm H shank
46.15 mm L usable
65 mm overhang
H6 connection diameter tolerance
WH55 thread form
H, K, M, N, P, S material grade
R217.9x..BC..N tool style
80000 r/min
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN, it is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys
20 life cycle state

DIN1835-B/DIN6535-HB

Catalog

SDS
