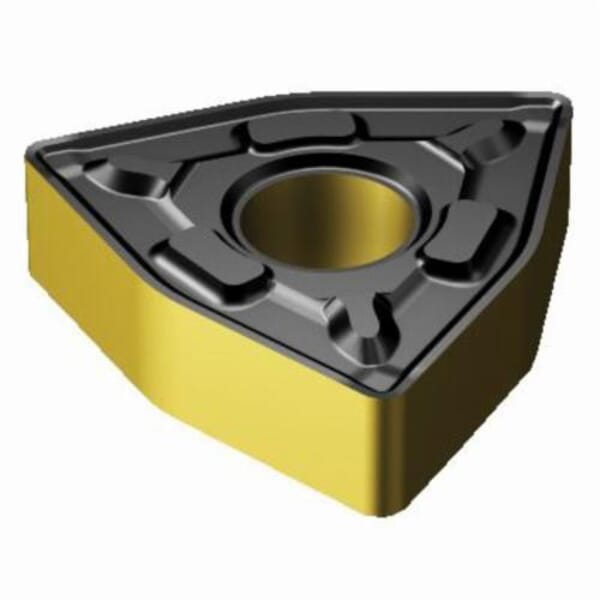

Sandvik Coromant 6613016 T-Max P Turning Insert, ANSI Code: WNMG 333-PR 4315, WNMG Insert, Material Grade: K, P, 333 Insert, Trigon Shape, 06 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

ManufacturerSandvik Coromant

Part #826213016

MFG #6613016

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 333 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 06 Seat, Negative Rake, PR Chipbreaker, 0.047 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: WNMG 333-PR 4315, ISO Code: WNMG 06 04 12-PR 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$16.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 333-PR 4315

Chipbreaker: PR

Corner Radius: 0.047 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.15 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 333

Insert Style: WNMG

ISO Code: WNMG 06 04 12-PR 4315

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 3.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 06

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 333 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 06 Seat, Negative Rake, PR Chipbreaker, 0.047 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: WNMG 333-PR 4315, ISO Code: WNMG 06 04 12-PR 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 333-PR 4315

Chipbreaker: PR

Corner Radius: 0.047 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.15 in

Included Angle: 80 deg

Inscribed Circle: 3/8 in

Insert Size: 333

Insert Style: WNMG

ISO Code: WNMG 06 04 12-PR 4315

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 3.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 06

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 333 Insert, Trigon, 3.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 06 Seat, Negative Rake, PR Chipbreaker, 0.047 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: WNMG 333-PR 4315, ISO Code: WNMG 06 04 12-PR 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
