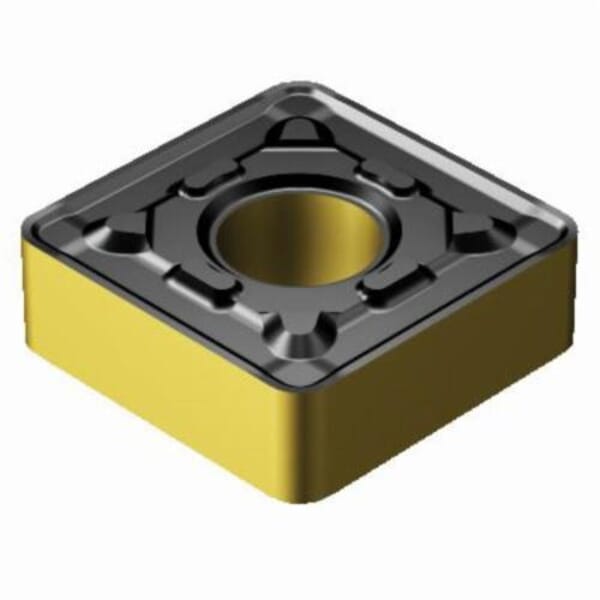

Sandvik Coromant 6613002 T-Max P Turning Insert, ANSI Code: SNMG 644-PR 4315, SNMG Insert, Material Grade: K, P, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6613002 T-Max P Turning Insert, ANSI Code: SNMG 644-PR 4315, SNMG Insert, Material Grade: K, P, 644 Insert, Squared Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

ManufacturerSandvik Coromant

Part #826213002

MFG #6613002

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 644 Insert, Squared, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, PR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: SNMG 644-PR 4315, ISO Code: SNMG 19 06 16-PR 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$40.43

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: SNMG 644-PR 4315

Chipbreaker: PR

Corner Radius: 0.0624 in

Country of Origin: US

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.312 in

Included Angle: 90 deg

Inscribed Circle: 3/4 in

Insert Size: 644

Insert Style: SNMG

ISO Code: SNMG 19 06 16-PR 4315

Length: 3/4 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 10 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Series: T-Max P

Shape: Squared

Thickness: 1/4 in

Width: 3/4 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 644 Insert, Squared, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, PR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: SNMG 644-PR 4315, ISO Code: SNMG 19 06 16-PR 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: SNMG 644-PR 4315

Chipbreaker: PR

Corner Radius: 0.0624 in

Country of Origin: US

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.312 in

Included Angle: 90 deg

Inscribed Circle: 3/4 in

Insert Size: 644

Insert Style: SNMG

ISO Code: SNMG 19 06 16-PR 4315

Length: 3/4 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 10 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Series: T-Max P

Shape: Squared

Thickness: 1/4 in

Width: 3/4 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, SNMG Insert, 644 Insert, Squared, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Width, 3/4 in Length, 19 Seat, Negative Rake, PR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: SNMG 644-PR 4315, ISO Code: SNMG 19 06 16-PR 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

SDS
