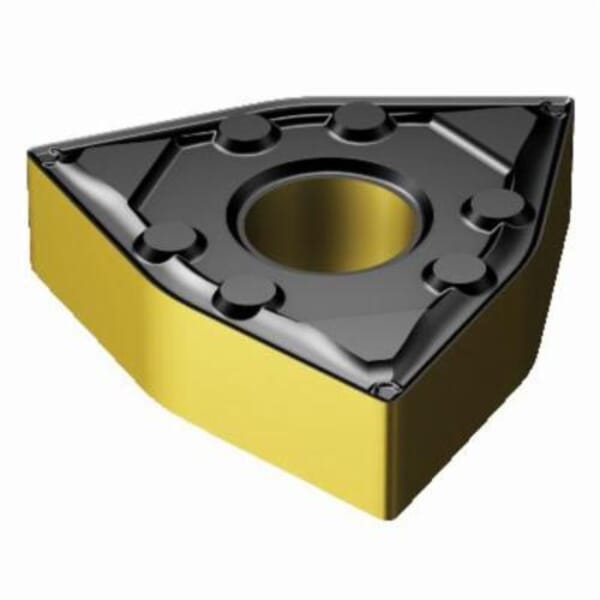

Sandvik Coromant 6612973 T-Max P Turning Insert, ANSI Code: WNMG 431-WF 4315, WNMG Insert, Material Grade: K, P, 431 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6612973 T-Max P Turning Insert, ANSI Code: WNMG 431-WF 4315, WNMG Insert, Material Grade: K, P, 431 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

ManufacturerSandvik Coromant

Part #826212973

MFG #6612973

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 431 Insert, Trigon, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, WF Chipbreaker, 0.016 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: WNMG 431-WF 4315, ISO Code: WNMG 08 04 04-WF 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$23.20

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 431-WF 4315

Chipbreaker: WF

Corner Radius: 0.016 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.2029 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 431

Insert Style: WNMG

ISO Code: WNMG 08 04 04-WF 4315

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 08

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 431 Insert, Trigon, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, WF Chipbreaker, 0.016 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: WNMG 431-WF 4315, ISO Code: WNMG 08 04 04-WF 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
