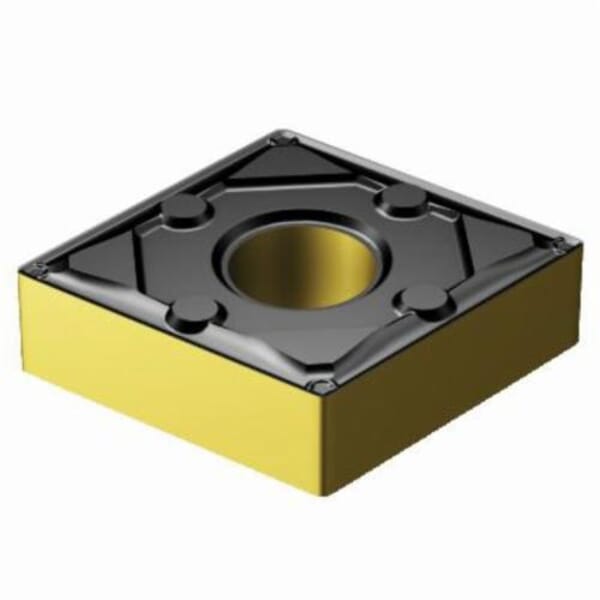

Sandvik Coromant 6612937 T-Max P Turning Insert, ANSI Code: CNMG 322-WF 4315, CNMG Insert, Material Grade: K, P, 322 Insert, Rhombic Shape, 09 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6612937 T-Max P Turning Insert, ANSI Code: CNMG 322-WF 4315, CNMG Insert, Material Grade: K, P, 322 Insert, Rhombic Shape, 09 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

ManufacturerSandvik Coromant

Part #826212937

MFG #6612937

Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 322 Insert, Rhombic, 0.098 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 09 Seat, Negative Rake, WF Chipbreaker, 0.031 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: CNMG 322-WF 4315, ISO Code: CNMG 09 03 08-WF 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$13.85

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: CNMG 322-WF 4315
Chipbreaker: WF
Corner Radius: 0.031 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.15 in
Included Angle: 80 deg
Inscribed Circle: 3/8 in
Insert Size: 322
Insert Style: CNMG
ISO Code: CNMG 09 03 08-WF 4315
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.098 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 09
Series: T-Max P
Shape: Rhombic
Thickness: 1/8 in
: Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 322 Insert, Rhombic, 0.098 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 09 Seat, Negative Rake, WF Chipbreaker, 0.031 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: CNMG 322-WF 4315, ISO Code: CNMG 09 03 08-WF 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: CNMG 322-WF 4315
Chipbreaker: WF
Corner Radius: 0.031 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.15 in
Included Angle: 80 deg
Inscribed Circle: 3/8 in
Insert Size: 322
Insert Style: CNMG
ISO Code: CNMG 09 03 08-WF 4315
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.098 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 09
Series: T-Max P
Shape: Rhombic
Thickness: 1/8 in
: Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 322 Insert, Rhombic, 0.098 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 09 Seat, Negative Rake, WF Chipbreaker, 0.031 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: CNMG 322-WF 4315, ISO Code: CNMG 09 03 08-WF 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
: SDS
