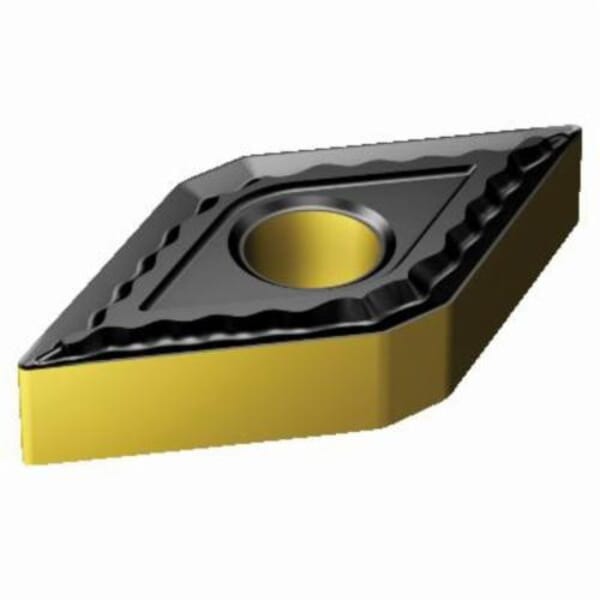

Sandvik Coromant 6612780 T-Max P Turning Insert, ANSI Code: DNMG 444-QM 4315, DNMG Insert, Material Grade: K, P, 444 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6612780 T-Max P Turning Insert, ANSI Code: DNMG 444-QM 4315, DNMG Insert, Material Grade: K, P, 444 Insert, Rhombic Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4315

ManufacturerSandvik Coromant

Part #826212780

MFG #6612780

Sandvik Coromant Turning Insert, Series: T-Max P, DNMG Insert, 444 Insert, Rhombic, 0.295 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 15 Seat, Negative Rake, QM Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: DNMG 444-QM 4315, ISO Code: DNMG 15 06 16-QM 4315, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$25.22

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: DNMG 444-QM 4315
Chipbreaker: QM
Corner Radius: 0.0624 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.2029 in
Included Angle: 55 deg
Inscribed Circle: 1/2 in
Insert Size: 444
Insert Style: DNMG
ISO Code: DNMG 15 06 16-QM 4315
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.295 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 15
Series: T-Max P
Shape: Rhombic
Thickness: 1/4 in
: Sandvik Coromant Turning Insert, Series: T-Max P, DNMG Insert, 444 Insert, Rhombic, 0.295 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 15 Seat, Negative Rake, QM Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: DNMG 444-QM 4315, ISO Code: DNMG 15 06 16-QM 4315, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
