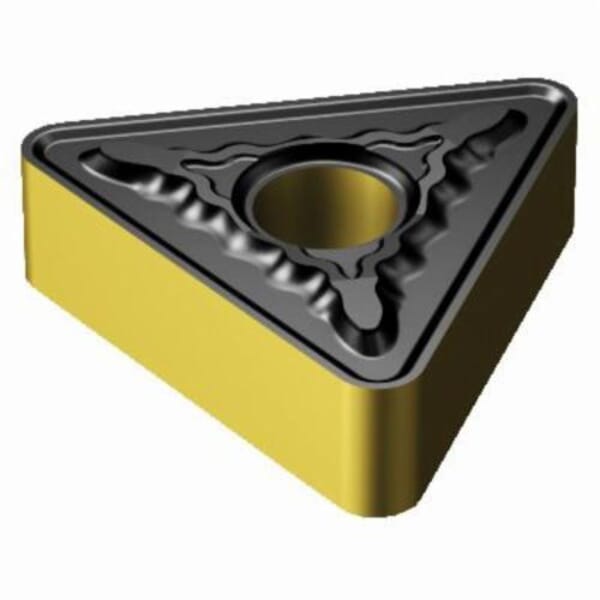

Sandvik Coromant 6612694 T-Max P Basic Shape Turning Insert, ANSI Code: TNMG 333-MR 4315, TNMG Insert, Material Grade: K, P, 333 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6612694 T-Max P Basic Shape Turning Insert, ANSI Code: TNMG 333-MR 4315, TNMG Insert, Material Grade: K, P, 333 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

ManufacturerSandvik Coromant

Part #826212694

MFG #6612694

Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max P, TNMG Insert, 333 Insert, Triangular, 0.315 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.649 in Length, 16 Seat, Negative Rake, MR Chipbreaker, 0.0468 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: TNMG 333-MR 4315, ISO Code: TNMG 16 04 12-MR 4315, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$16.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: TNMG 333-MR 4315
Chipbreaker: MR
Corner Radius: 0.0468 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.15 in
Included Angle: 60 deg
Inscribed Circle: 3/8 in
Insert Size: 333
Insert Style: TNMG
ISO Code: TNMG 16 04 12-MR 4315
Length: 0.649 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.315 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 16
Series: T-Max P
Shape: Triangular
Thickness: 0.187 in
Type: Basic Shape
: Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max P, TNMG Insert, 333 Insert, Triangular, 0.315 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.649 in Length, 16 Seat, Negative Rake, MR Chipbreaker, 0.0468 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: TNMG 333-MR 4315, ISO Code: TNMG 16 04 12-MR 4315, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
: SDS

: Manufacturer Name: Sandvik Coromant
ANSI Code: TNMG 333-MR 4315
Chipbreaker: MR
Corner Radius: 0.0468 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.15 in
Included Angle: 60 deg
Inscribed Circle: 3/8 in
Insert Size: 333
Insert Style: TNMG
ISO Code: TNMG 16 04 12-MR 4315
Length: 0.649 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.315 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 16
Series: T-Max P
Shape: Triangular
Thickness: 0.187 in
Type: Basic Shape
: Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max P, TNMG Insert, 333 Insert, Triangular, 0.315 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 0.649 in Length, 16 Seat, Negative Rake, MR Chipbreaker, 0.0468 in Corner Radius, 0.15 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: TNMG 333-MR 4315, ISO Code: TNMG 16 04 12-MR 4315, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
