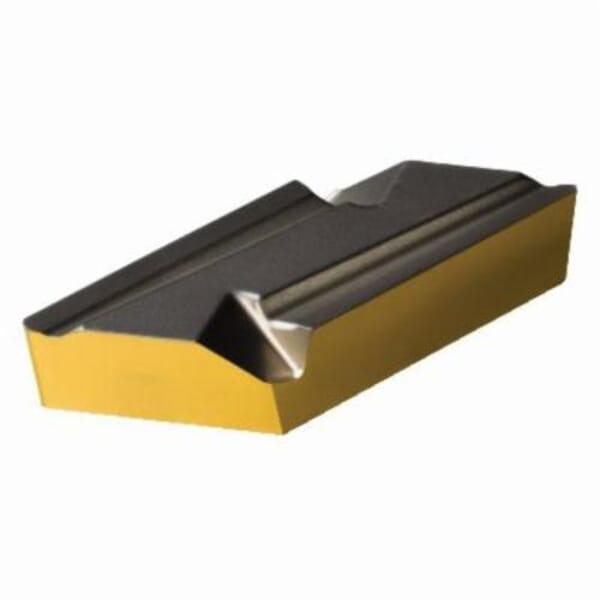

Sandvik Coromant 6612623 T-Max 1-Sided Turning Insert, ANSI Code: KNUX 16 04 05L11 4315, KNUX Insert, Material Grade: K, P, 160405 Insert, Parallelogram Shape, 16 Seat, Negative Rake, Left Hand Cutting, For Use On Cast Iron and Steel, Carbide

ManufacturerSandvik Coromant

Part #826212623

MFG #6612623

Sandvik Coromant Turning Insert, 1-Sided, Series: T-Max, KNUX Insert, 160405 Insert, Parallelogram, 0.236 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.187 in Thickness, 3/8 in Width, 0.6496 in Length, 16 Seat, Negative Rake, 13 Chipbreaker, 0.02 in Corner Radius, Manufacturers Grade: 4315, ANSI Code: KNUX 16 04 05L11 4315, ISO Code: KNUX 16 04 05L11 4315, 55 deg Included Angle, 0 deg Relief Angle, Left Hand Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$27.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: KNUX 16 04 05L11 4315
Chipbreaker: 13
Corner Radius: 0.02 in
Country of Origin: IN
Cutting Direction: Left Hand
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Included Angle: 55 deg
Inscribed Circle: 3/8 in
Insert Size: 160405
Insert Style: KNUX
ISO Code: KNUX 16 04 05L11 4315
Length: 0.6496 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4315
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.236 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 16
Series: T-Max
Shape: Parallelogram
Thickness: 0.187 in
Type: 1-Sided
Width: 3/8 in
: T-Max is designed for productive external and internal turning of difficult-to-machine materials. It resists wear, for secure and stable machining, and offers longer tool life. Performs multiple operations, from roughing to finishing, offering higher metal removal rates for increased production.
