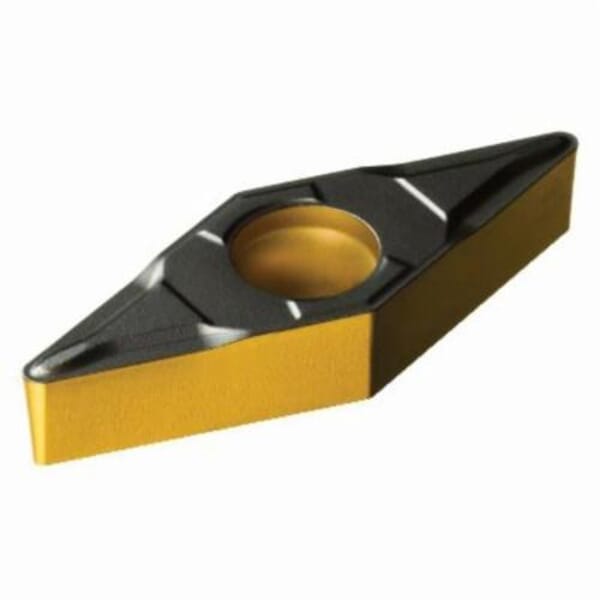

Sandvik Coromant 6612496 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: VBMT 222-PF 4315, VBMT Insert, Material Grade: K, P, 222 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

ManufacturerSandvik Coromant

Part #826212496

MFG #6612496

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VBMT Insert, 222 Insert, Diamond, 1.7 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, 11 Seat, Positive Rake, PF Chipbreaker, 0.031 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: VBMT 222-PF 4315, ISO Code: VBMT 11 03 08-PF 4315, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$23.83

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: VBMT 222-PF 4315

Chipbreaker: PF

Corner Radius: 0.031 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.1102 in

Included Angle: 35 deg

Inscribed Circle: 1/4 in

Insert Size: 222

Insert Style: VBMT

ISO Code: VBMT 11 03 08-PF 4315

Length: 0.4358 in

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 1.7 mm

Rake: Positive

Relief Angle: 5 deg

Seat Size: 11

Series: CoroTurn 107

Shape: Diamond

Thickness: 1/8 in

Type: 1-Sided Basic Shape

Unobstructed chip flow
Excellent chip control
Exceptional surface finish
Ground, super sharp insert offer for exceptional surface finish
Holders with conventional and precision coolant design

Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, VBMT Insert, 222 Insert, Diamond, 1.7 mm Maximum Depth of Cut, 1/4 in Inscribed Circle, 1/8 in Thickness, 0.4358 in Length, 11 Seat, Positive Rake, PF Chipbreaker, 0.031 in Corner Radius, 0.1102 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: VBMT 222-PF 4315, ISO Code: VBMT 11 03 08-PF 4315, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
