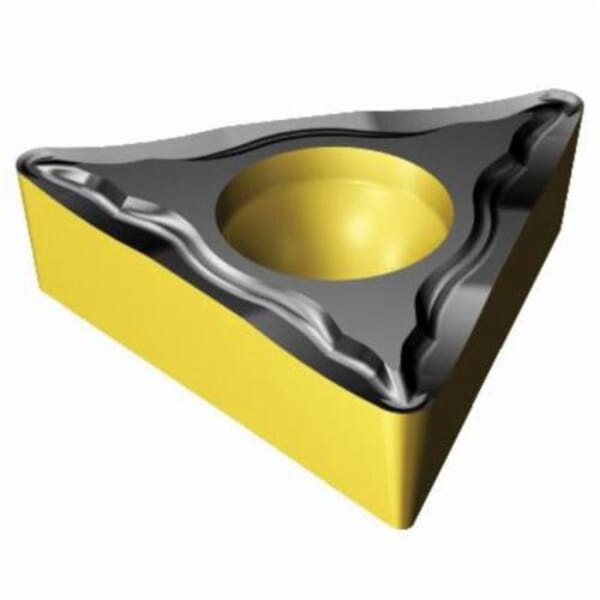

Sandvik Coromant 6612481 CoroTurn 107 Turning Insert, ANSI Code: TCMT 3(2.5)2-UM 4315, TCMT Insert, Material Grade: K, P, 3(2.5)2 Insert, Triangular Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 6612481 CoroTurn 107 Turning Insert, ANSI Code: TCMT 3(2.5)2-UM 4315, TCMT Insert, Material Grade: K, P, 3(2.5)2 Insert, Triangular Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

ManufacturerSandvik Coromant

Part #826212481

MFG #6612481

Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCMT Insert, 3(2.5)2 Insert, Triangular, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 16 Seat, Positive Rake, UM Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: TCMT 3(2.5)2-UM 4315, ISO Code: TCMT 16 T3 08-UM 4315, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$19.90

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: TCMT 3(2.5)2-UM 4315

Chipbreaker: UM

Corner Radius: 0.031 in

Country of Origin: IN

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.1732 in

Included Angle: 60 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)2

Insert Style: TCMT

ISO Code: TCMT 16 T3 08-UM 4315

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 4 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 16

Series: CoroTurn 107

Shape: Triangular

Thickness: 0.156 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCMT Insert, 3(2.5)2 Insert, Triangular, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 16 Seat, Positive Rake, UM Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: TCMT 3(2.5)2-UM 4315, ISO Code: TCMT 16 T3 08-UM 4315, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: TCMT 3(2.5)2-UM 4315

Chipbreaker: UM

Corner Radius: 0.031 in

Country of Origin: IN

Cutting Direction: Neutral

Finish: CVD-TiCN+Al2O3+TiN Coated

For Use On: Cast Iron and Steel

Hole Diameter: 0.1732 in

Included Angle: 60 deg

Inscribed Circle: 3/8 in

Insert Size: 3(2.5)2

Insert Style: TCMT

ISO Code: TCMT 16 T3 08-UM 4315

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: 4315

Material: Carbide

Material Grade: K, P

Maximum Depth of Cut: 4 mm

Rake: Positive

Relief Angle: 7 deg

Seat Size: 16

Series: CoroTurn 107

Shape: Triangular

Thickness: 0.156 in

When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
Ground, super sharp insert offer for exceptional surface finish
Wiper geometries available for high feeds and high quality surface finish

Sandvik Coromant Turning Insert, Series: CoroTurn 107, TCMT Insert, 3(2.5)2 Insert, Triangular, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 16 Seat, Positive Rake, UM Chipbreaker, 0.031 in Corner Radius, 0.1732 in Hole Dia, Manufacturers Grade: 4315, ANSI Code: TCMT 3(2.5)2-UM 4315, ISO Code: TCMT 16 T3 08-UM 4315, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

SDS
