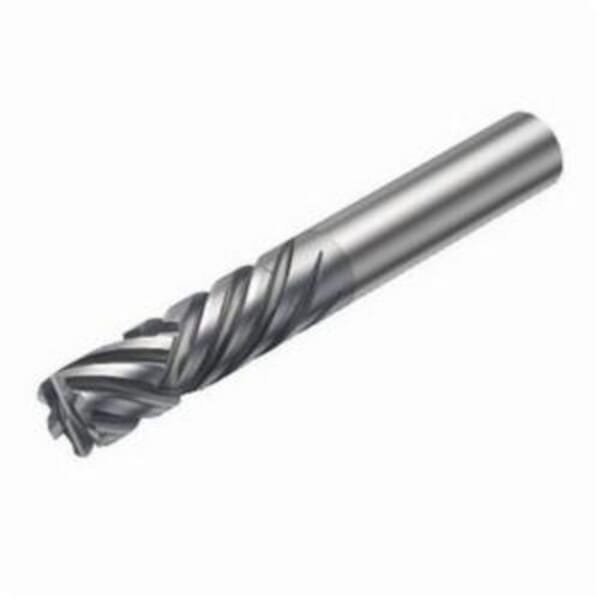

Sandvik Coromant 6255721 CoroMill Plura Square Shoulder End Mill, 0.472 in Dia Cutter, 1.496 in Length of Cut, 6 Flutes, 0.472 in Dia Shank, 3.937 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826212270

MFG #6255721

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.472 in Diameter Cutter, 3.937 in Overall Length, 1.496 in Length of Cut, 6 Flutes, 0.472 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 2P460-1200-NA 1630, ISO Code: 2P460-1200-NA 1630, Solid Carbide, PVD Coated

$398.93

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2P460-1200-NA 1630

Country of Origin: US

Cutter Diameter: 0.472 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 30 deg

ISO Code: 2P460-1200-NA 1630

Length of Cut: 1.496 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 6

Overall Length: 3.937 in

Series: CoroMill Plura

Shank Diameter: 0.472 in

Shank Type: Cylindrical

Type: Square

1630 manufacturer grade
1 mm maximum working engagement
0.55 maximum working engagement ratio
Compression chip breaker
Center cutting capability
7.8 mm Dia core at face
6 cutting length
Without coolant entry
No coolant exit
12 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
12.5 deg radial rake
4 deg axial rake
38 mm L usable
3 maximum regrinds
55 mm overhang
12 mm position were FHA change direction
90 deg y-axis rot
0 deg ramping

DIN1835-A|DIN6535-HA
