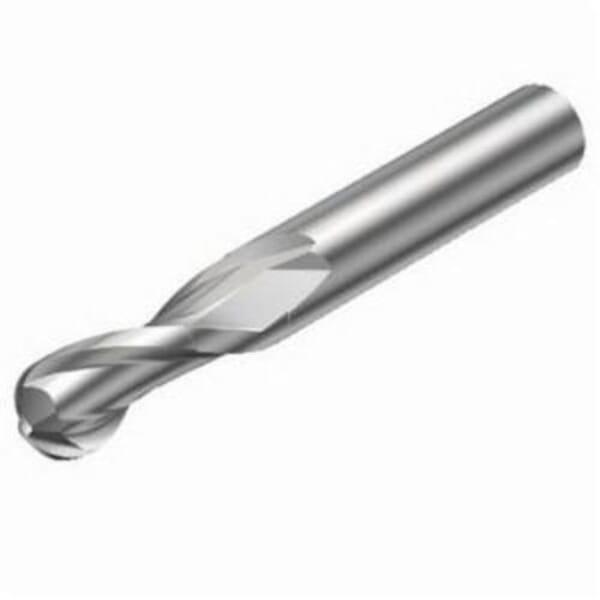

Sandvik Coromant 6259976 CoroMill Plura Ball Nose End Mill, 0.314 in Dia Cutter, 0.551 in Length of Cut, 1 Flutes, 0.314 in Dia Shank, 2.48 in OAL, Uncoated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6259976 CoroMill Plura Ball Nose End Mill, 0.314 in Dia Cutter, 0.551 in Length of Cut, 1 Flutes, 0.314 in Dia Shank, 2.48 in OAL, Uncoated

ManufacturerSandvik Coromant

Part #826211790

MFG #6259976

Sandvik Coromant End Mill, Ball Nose, Series: CoroMill Plura, 0.314 in Diameter Cutter, 2.48 in Overall Length, 0.551 in Length of Cut, 1 Flutes, 0.314 in Shank Diameter, Right Hand Cutting Direction, 40 deg Helix Angle, Cylindrical Shank, ANSI Code: 2B330-0800-NC H10F, ISO Code: 2B330-0800-NC H10F, Solid Carbide, Uncoated

$198.33

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2B330-0800-NC H10F

Country of Origin: SE

Cutter Diameter: 0.314 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 40 deg

ISO Code: 2B330-0800-NC H10F

Length of Cut: 0.551 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 1

Overall Length: 2.48 in

Series: CoroMill Plura

Shank Diameter: 0.314 in

Shank Type: Cylindrical

Type: Ball Nose

H10F manufacturer grade
1 face effective cutt edge
7.7 mm Dia body
0 - 30 deg body half taper
Straight chip breaker
3.2 mm Dia core at face
23.8 mm L body
3 cutting length
Without coolant entry
No coolant exit
7.7 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
17 deg radial rake
1.5 deg axial rake
23.8 mm L usable
2 maximum regrinds
27 mm overhang
0 deg lead
4 mm corner radius

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 2B330-0800-NC H10F

Country of Origin: SE

Cutter Diameter: 0.314 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 40 deg

ISO Code: 2B330-0800-NC H10F

Length of Cut: 0.551 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 1

Overall Length: 2.48 in

Series: CoroMill Plura

Shank Diameter: 0.314 in

Shank Type: Cylindrical

Type: Ball Nose

H10F manufacturer grade
1 face effective cutt edge
7.7 mm Dia body
0 - 30 deg body half taper
Straight chip breaker
3.2 mm Dia core at face
23.8 mm L body
3 cutting length
Without coolant entry
No coolant exit
7.7 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
17 deg radial rake
1.5 deg axial rake
23.8 mm L usable
2 maximum regrinds
27 mm overhang
0 deg lead
4 mm corner radius

DIN1835-A|DIN6535-HA

Pre-Machining and Finishing

Catalog

SDS
