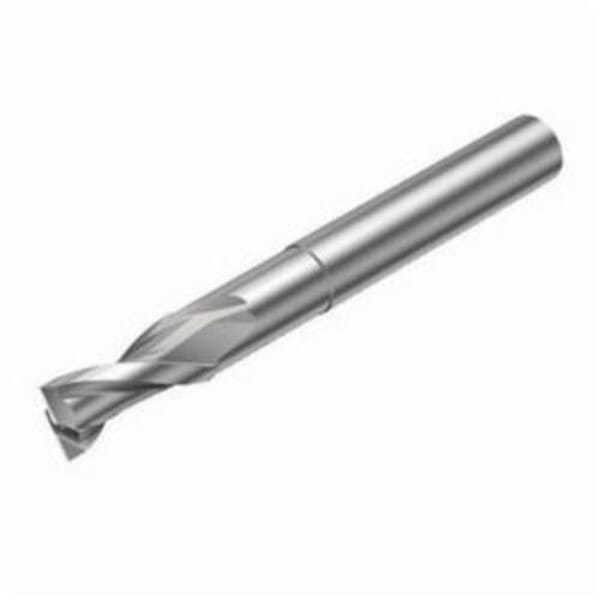

Sandvik Coromant 6259988 CoroMill Plura Square Shoulder End Mill, 0.236 in Dia Cutter, 0.393 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.559 in OAL, Uncoated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6259988 CoroMill Plura Square Shoulder End Mill, 0.236 in Dia Cutter, 0.393 in Length of Cut, 2 Flutes, 0.236 in Dia Shank, 2.559 in OAL, Uncoated

ManufacturerSandvik Coromant

Part #826211787

MFG #6259988

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.236 in Diameter Cutter, 2.559 in Overall Length, 0.393 in Length of Cut, 2 Flutes, 0.236 in Shank Diameter, Right Hand Cutting Direction, 25 deg Helix Angle, Cylindrical Shank, ANSI Code: 2P120-0600-NC H10F, ISO Code: 2P120-0600-NC H10F, Solid Carbide, Uncoated

$94.75

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2P120-0600-NC H10F

Country of Origin: IT

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 25 deg

ISO Code: 2P120-0600-NC H10F

Length of Cut: 0.393 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 2.559 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Square

H10F manufacturer grade
1 mm maximum working engagement
1 maximum working engagement ratio
AL chip breaker
Center cutting capability
2.4 mm Dia core at face
M cutting length
Without coolant entry
No coolant exit
6 mm Dia cutting face contact
5.7 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
13.5 deg radial rake
13.5 deg axial rake
28 mm L usable
29 mm overhang
90 deg y-axis rot
15 deg ramping
80000 r/min

DIN1835-A|DIN6535-HA

Catalog

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: 2P120-0600-NC H10F

Country of Origin: IT

Cutter Diameter: 0.236 in

Cutting Direction: Right Hand

Finish: Uncoated

Helix Angle: 25 deg

ISO Code: 2P120-0600-NC H10F

Length of Cut: 0.393 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 2.559 in

Series: CoroMill Plura

Shank Diameter: 0.236 in

Shank Type: Cylindrical

Type: Square

H10F manufacturer grade
1 mm maximum working engagement
1 maximum working engagement ratio
AL chip breaker
Center cutting capability
2.4 mm Dia core at face
M cutting length
Without coolant entry
No coolant exit
6 mm Dia cutting face contact
5.7 mm Dia neck
SFW (EFW) feed direction
Right helix flute hand
13.5 deg radial rake
13.5 deg axial rake
28 mm L usable
29 mm overhang
90 deg y-axis rot
15 deg ramping
80000 r/min

DIN1835-A|DIN6535-HA

Catalog

SDS
