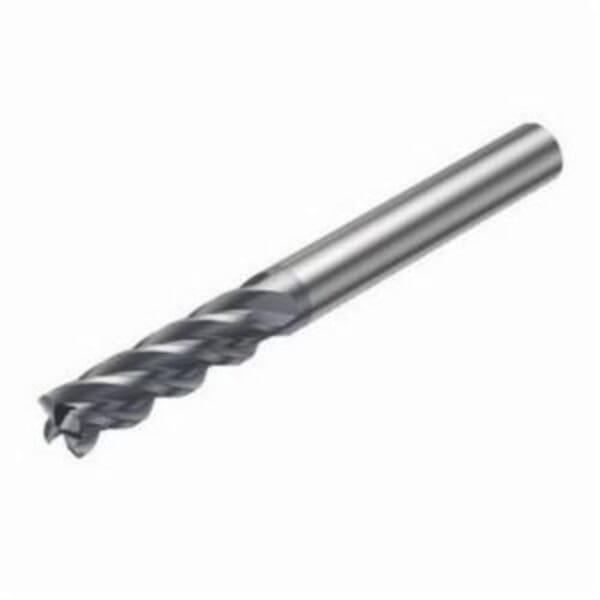

Sandvik Coromant 6260140 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 2.362 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 4.881 in OAL, PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6260140 CoroMill Plura Square Shoulder End Mill, 0.629 in Dia Cutter, 2.362 in Length of Cut, 4 Flutes, 0.629 in Dia Shank, 4.881 in OAL, PVD Coated

ManufacturerSandvik Coromant

Part #826211771

MFG #6260140

Sandvik Coromant Shoulder End Mill, Square, Series: CoroMill Plura, 0.629 in Diameter Cutter, 4.881 in Overall Length, 2.362 in Length of Cut, 4 Flutes, 0.629 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Cylindrical Shank, ANSI Code: 2P360-1600-PA 1630, ISO Code: 2P360-1600-PA 1630, Solid Carbide, PVD Coated

$548.53

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: 2P360-1600-PA 1630

Country of Origin: IT

Cutter Diameter: 0.629 in

Cutting Direction: Right Hand

Finish: PVD Coated

Helix Angle: 37 deg

ISO Code: 2P360-1600-PA 1630

Length of Cut: 2.362 in

Manufacturer Name: Sandvik Coromant

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 4.881 in

Series: CoroMill Plura

Shank Diameter: 0.629 in

Shank Type: Cylindrical

Type: Square

1630 manufacturer grade
1.5 mm maximum working engagement
0.75 maximum working engagement ratio
Center cutting capability
11.45 mm Dia core at face
0.15 mm W corner chamfer
6 cutting length
Without coolant entry
No coolant exit
15.7 mm Dia cutting face contact
SFW (EFW) feed direction
Right helix flute hand
10 deg radial rake
7.5 deg axial rake
60 mm L usable
4 maximum regrinds
78 mm overhang
90 deg y-axis rot
5 deg ramping
13800 r/min

DIN1835-A|DIN6535-HA
