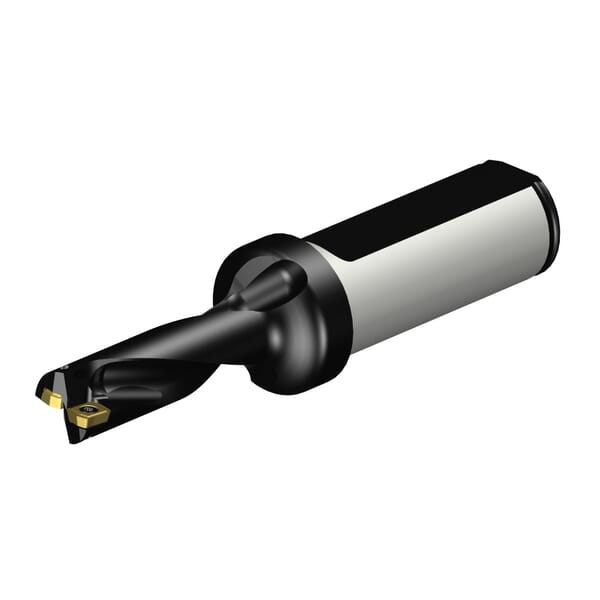

Sandvik Coromant 5765254 CoroDrill 880 Indexable Insert Drill, 0.492 in Drill, 0.787 in Modular Connection, 0.787 in Dia Shank, 3.04XD Drill Depth by Dia Ratio, 4.055 in OAL, 1.496 in D Max Drill

ManufacturerSandvik Coromant

Part #826211213

MFG #5765254

Sandvik Coromant Indexable Insert Drill, Series: LV535, 0.492 in Drill, 0.787 in Shank Dia, 1.969 in Shank Length, Cylindrical Shank, 0.787 in Modular Connection Size, 1.496 in Maximum Drill Depth, 4.055 in Overall Length, 0.492 in Dia, 3.04XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-010203H-C-GR (MIIDM), 880-0102W04-P-GR (MIIDM), 1.575 in Flute Length, Yes Through Coolant (Yes/No)

$756.77

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Diameter: 0.492 in

Drill Depth by Diameter Ratio: 3.04XD

Drill Size: 0.492 in

Flute Length: 1.575 in

Insert Compatibility: 880-010203H-C-GR (MIIDM), 880-0102W04-P-GR (MIIDM)

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 1.496 in

Modular Connection Size: 0.787 in

Number of Drill Inserts: 2

Overall Length: 4.055 in

Series: CoroDrill 880

Shank Diameter: 0.787 in

Shank Length: 1.969 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Wiper geometry for best surface finish or higher feed possibilities
Easy identification due to laser marking with drill insert and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized chip channels for accelerated chip evacuation
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life

For helical interpolation, boring, plunging, turning and drilling

ISO 13399
