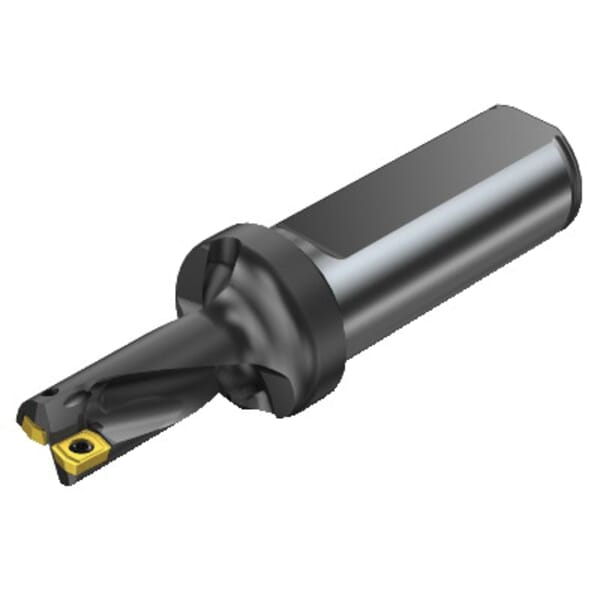

Sandvik Coromant 5765583 CoroDrill 880 Indexable Insert Drill, 0.906 in Drill, 0.984 in Modular Connection, 0.984 in Dia Shank, 2XD Drill Depth by Dia Ratio, 4.921 in OAL, 1.811 in D Max Drill

ManufacturerSandvik Coromant

Part #826211195

MFG #5765583

Sandvik Coromant Indexable Insert Drill, Series: CoroDrill 880, 0.906 in Drill, 0.984 in Shank Dia, 2.2047 in Shank Length, Cylindrical Shank, 0.984 in Modular Connection Size, 1.811 in Maximum Drill Depth, 4.921 in Overall Length, 0.906 in Dia, 2XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-040305H-C-GM (MIIDM), 880-0403W05H-P-GM (MIIDM), 1.969 in Flute Length, Through Coolant: Yes

$799.35

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Diameter: 0.906 in

Drill Depth by Diameter Ratio: 2XD

Drill Size: 0.906 in

Flute Length: 1.969 in

Insert Compatibility: 880-040305H-C-GM (MIIDM), 880-0403W05H-P-GM (MIIDM)

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 1.811 in

Modular Connection Size: 0.984 in

Number of Drill Inserts: 2

Overall Length: 4.921 in

Series: CoroDrill 880

Shank Diameter: 0.984 in

Shank Length: 2.2047 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Wiper geometry for best surface finish or higher feed possibilities
Easy identification due to laser marking with drill insert and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized chip channels for accelerated chip evacuation
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life

ISO 13399

For helical interpolation, boring, plunging, turning and drilling

Catalog

Manufacturer Name: Sandvik Coromant

Country of Origin: SE

Diameter: 0.906 in

Drill Depth by Diameter Ratio: 2XD

Drill Size: 0.906 in

Flute Length: 1.969 in

Insert Compatibility: 880-040305H-C-GM (MIIDM), 880-0403W05H-P-GM (MIIDM)

Manufacturer Name: Sandvik Coromant

Maximum Drill Depth: 1.811 in

Modular Connection Size: 0.984 in

Number of Drill Inserts: 2

Overall Length: 4.921 in

Series: CoroDrill 880

Shank Diameter: 0.984 in

Shank Length: 2.2047 in

Shank Type: Cylindrical

Through Coolant (Yes/No): Yes

Wiper geometry for best surface finish or higher feed possibilities
Easy identification due to laser marking with drill insert and screw codes on the drill shank
Two or four cutting edges depending on drill diameter
Optimized chip channels for accelerated chip evacuation
Optimized geometries assure high performance in most materials
Optimized grades assure longer insert tool life

ISO 13399

For helical interpolation, boring, plunging, turning and drilling
