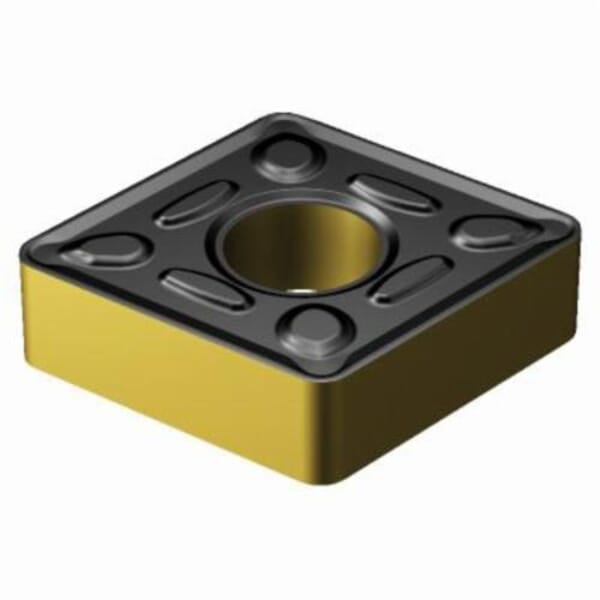

Sandvik Coromant 6707400 T-Max P Turning Insert, ANSI Code: CNMG 646-HM 4305, CNMG Insert, Material Grade: K, P, 646 Insert, Rhombic Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4305

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6707400 T-Max P Turning Insert, ANSI Code: CNMG 646-HM 4305, CNMG Insert, Material Grade: K, P, 646 Insert, Rhombic Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4305

ManufacturerSandvik Coromant

Part #826210631

MFG #6707400

Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 646 Insert, Rhombic, 0.394 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, HM Chipbreaker, 0.094 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 4305, ANSI Code: CNMG 646-HM 4305, ISO Code: CNMG 19 06 24-HM 4305, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$43.08

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: CNMG 646-HM 4305
Chipbreaker: HM
Corner Radius: 0.094 in
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.312 in
Included Angle: 80 deg
Inscribed Circle: 3/4 in
Insert Size: 646
Insert Style: CNMG
ISO Code: CNMG 19 06 24-HM 4305
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4305
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.394 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 19
Series: T-Max P
Shape: Rhombic
Thickness: 1/4 in
: Sandvik Coromant Turning Insert, Series: T-Max P, CNMG Insert, 646 Insert, Rhombic, 0.394 in Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 19 Seat, Negative Rake, HM Chipbreaker, 0.094 in Corner Radius, 0.312 in Hole Dia, Manufacturers Grade: 4305, ANSI Code: CNMG 646-HM 4305, ISO Code: CNMG 19 06 24-HM 4305, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
