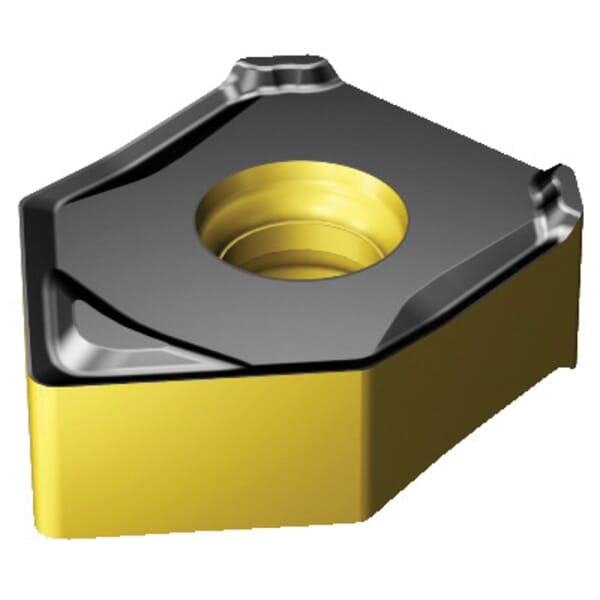

Sandvik Coromant 5910466 CoroMill 345 Milling Insert, ANSI Code: 345N-1305E-KW8 3220, 345N-KW8 Insert, 1305 Insert, Carbide, Manufacturers Grade: 3220, Squared Shape, Material Grade: K

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 5910466 CoroMill 345 Milling Insert, ANSI Code: 345N-1305E-KW8 3220, 345N-KW8 Insert, 1305 Insert, Carbide, Manufacturers Grade: 3220, Squared Shape, Material Grade: K

ManufacturerSandvik Coromant

Part #826210466

MFG #5910466

Sandvik Coromant Milling Insert, Series: CoroMill 345, 345N-KW8 Insert, 1305 Insert, Squared, 0.512 in Inscribed Circle, 0.199 in Thickness, 0.512 in Width, 0.512 in Length, KW8 Chipbreaker, 0.039 in Corner Radius, 45 deg Lead Angle, 0.189 in Hole Dia, Manufacturers Grade: 3220, ANSI Code: 345N-1305E-KW8 3220, ISO Code: 345N-1305E-KW8 3220, Ambidextrous Hand, Carbide, MTCVD-TiCN+Al2O3+TiN Coated, Material Grade: K, Cast Iron Material Application

$41.23

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: 345N-1305E-KW8 3220
Chipbreaker: KW8
Corner Radius: 0.039 in
Country of Origin: SE
Finish: MTCVD-TiCN+Al2O3+TiN Coated
Hand of Insert: Ambidextrous
Hole Diameter: 0.189 in
Inscribed Circle: 0.512 in
Insert Size: 1305
Insert Style: 345N-KW8
ISO Code: 345N-1305E-KW8 3220
Lead Angle: 45 deg
Length: 0.512 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 3220
Material: Carbide
Material Application: Cast Iron
Material Grade: K
Series: CoroMill 345
Shape: Squared
Thickness: 0.199 in
Width: 0.512 in
