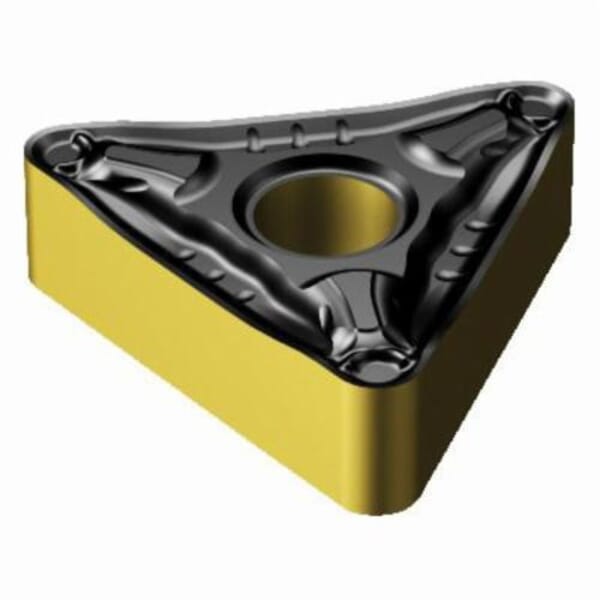

Sandvik Coromant 6532434 T-Max P Basic Shape Turning Insert, ANSI Code: TNMG 433-PM 4325, TNMG Insert, Material Grade: K, P, 433 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Sandvik Coromant

Sandvik Coromant 6532434 T-Max P Basic Shape Turning Insert, ANSI Code: TNMG 433-PM 4325, TNMG Insert, Material Grade: K, P, 433 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

ManufacturerSandvik Coromant

Part #826210389

MFG #6532434

Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max P, TNMG Insert, 433 Insert, Triangular, 0.26 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.866 in Length, 22 Seat, Negative Rake, PM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TNMG 433-PM 4325, ISO Code: TNMG 22 04 12-PM 4325, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

$22.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Sandvik Coromant
ANSI Code: TNMG 433-PM 4325
Chipbreaker: PM
Corner Radius: 0.0468 in
Country of Origin: JP
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3+TiN Coated
For Use On: Cast Iron and Steel
Hole Diameter: 0.2029 in
Included Angle: 60 deg
Inscribed Circle: 1/2 in
Insert Size: 433
Insert Style: TNMG
ISO Code: TNMG 22 04 12-PM 4325
Length: 0.866 in
Manufacturer Name: Sandvik Coromant
Manufacturers Grade: 4325
Material: Carbide
Material Grade: K, P
Maximum Depth of Cut: 0.26 in
Rake: Negative
Relief Angle: 0 deg
Seat Size: 22
Series: T-Max P
Shape: Triangular
Thickness: 0.187 in
Type: Basic Shape
: Sandvik Coromant Turning Insert, Basic Shape, Series: T-Max P, TNMG Insert, 433 Insert, Triangular, 0.26 in Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 0.866 in Length, 22 Seat, Negative Rake, PM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: TNMG 433-PM 4325, ISO Code: TNMG 22 04 12-PM 4325, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel
