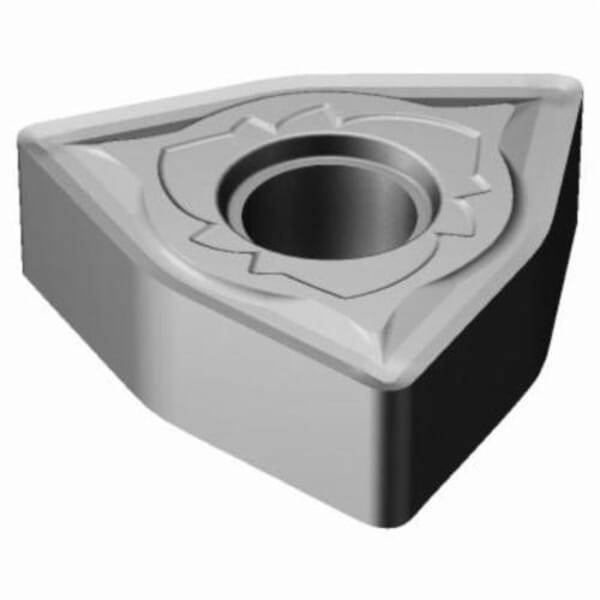

Sandvik Coromant 5909112 T-Max P Turning Insert, ANSI Code: WNMG 432-SMR H13A, WNMG Insert, Material Grade: M, S, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Sandvik Coromant

Sandvik Coromant 5909112 T-Max P Turning Insert, ANSI Code: WNMG 432-SMR H13A, WNMG Insert, Material Grade: M, S, 432 Insert, Trigon Shape, 08 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium

ManufacturerSandvik Coromant

Part #826209112

MFG #5909112

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, SMR Chipbreaker, 0.031 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: H13A, ANSI Code: WNMG 432-SMR H13A, ISO Code: WNMG 08 04 08-SMR H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium

$14.48

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 432-SMR H13A

Chipbreaker: SMR

Corner Radius: 0.031 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: Uncoated

For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium

Hole Diameter: 0.2029 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMG

ISO Code: WNMG 08 04 08-SMR H13A

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Grade: M, S

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 08

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools

Sandvik Coromant Turning Insert, Series: T-Max P, WNMG Insert, 432 Insert, Trigon, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.187 in Thickness, 08 Seat, Negative Rake, SMR Chipbreaker, 0.031 in Corner Radius, 0.2029 in Hole Dia, Manufacturers Grade: H13A, ANSI Code: WNMG 432-SMR H13A, ISO Code: WNMG 08 04 08-SMR H13A, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: M, S, For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium

SDS

Manufacturer Name: Sandvik Coromant

ANSI Code: WNMG 432-SMR H13A

Chipbreaker: SMR

Corner Radius: 0.031 in

Country of Origin: SE

Cutting Direction: Neutral

Finish: Uncoated

For Use On: Stainless Steel, Heat Resistant Super Alloys and Titanium

Hole Diameter: 0.2029 in

Included Angle: 80 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: WNMG

ISO Code: WNMG 08 04 08-SMR H13A

Manufacturer Name: Sandvik Coromant

Manufacturers Grade: H13A

Material: Carbide

Material Grade: M, S

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 08

Series: T-Max P

Shape: Trigon

Thickness: 0.187 in

Excellent surface finish
Reliable and secure machining, even in roughing applications
Possibility to optimize by using damped Silent Tools
